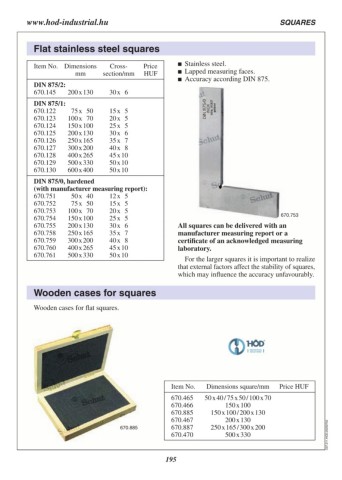

Page 195 - Schut Catalog
P. 195
www.hod-industrial.hu SQUARES
Flat stainless steel squares Stainless steel.
Lapped measuring faces.
Item No. Dimensions Cross- Price Accuracy according DIN 875.
mm section/mm HUF
670.753
DIN 875/2:
670.145 200 x 130 30 x 6 All squares can be delivered with an
DIN 875/1: manufacturer measuring report or a
670.122 75 x 50 15 x 5 certificate of an acknowledged measuring
670.123 100 x 70 20 x 5 laboratory.
670.124 150 x 100 25 x 5
670.125 200 x 130 30 x 6 For the larger squares it is important to realize
670.126 250 x 165 35 x 7 that external factors affect the stability of squares,
670.127 300 x 200 40 x 8 which may influence the accuracy unfavourably.
670.128 400 x 265 45 x 10
670.129 500 x 330 50 x 10
670.130 600 x 400 50 x 10
DIN 875/0, hardened
(with manufacturer measuring report):
670.751 50 x 40 12 x 5
670.752 75 x 50 15 x 5
670.753 100 x 70 20 x 5
670.754 150 x 100 25 x 5
670.755 200 x 130 30 x 6
670.758 250 x 165 35 x 7
670.759 300 x 200 40 x 8
670.760 400 x 265 45 x 10
670.761 500 x 330 50 x 10
Wooden cases for squares
Wooden cases for flat squares.
Item No. Dimensions square/mm Price HUF
670.465 50 x 40 / 75 x 50 / 100 x 70
670.885 670.466 C07.211.HOD.20250410
670.885 150 x 100
670.467 150 x 100 / 200 x 130
670.887
670.470 200 x 130
250 x 165 / 300 x 200
500 x 330
