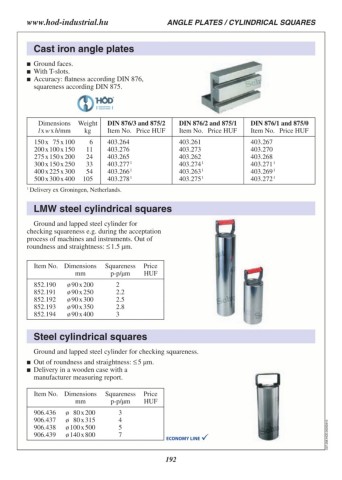

www.hod-industrial.hu ANGLE PLATES / CYLINDRICAL SQUARES
Cast iron angle plates
Ground faces.
With T-slots.
Accuracy: flatness according DIN 876,
squareness according DIN 875.
Dimensions Weight DIN 876/3 and 875/2 DIN 876/2 and 875/1 DIN 876/1 and 875/0
l x w x h/mm kg Item No. Price HUF Item No. Price HUF Item No. Price HUF
403.261 403.267
150 x 75 x 100 6 403.264 403.273 403.270
200 x 100 x 150 11 403.276 403.262 403.268
275 x 150 x 200 24 403.265 403.274 1 403.271 1
300 x 150 x 250 33 403.277 1 403.263 1 403.269 1
400 x 225 x 300 54 403.266 1 403.275 1 403.272 1
500 x 300 x 400 105 403.278 1
1 Delivery ex Groningen, Netherlands.
LMW steel cylindrical squares
Ground and lapped steel cylinder for
checking squareness e.g. during the acceptation
process of machines and instruments. Out of
roundness and straightness: ≤ 1.5 µm.
Item No. Dimensions Squareness Price
mm p-p/µm HUF
852.190 ø 90 x 200 2
852.191 ø 90 x 250 2.2
852.192 ø 90 x 300 2.5
852.193 ø 90 x 350 2.8
852.194 ø 90 x 400 3
Steel cylindrical squares
Ground and lapped steel cylinder for checking squareness.
Out of roundness and straightness: ≤ 5 µm.
Delivery in a wooden case with a
manufacturer measuring report.
Item No. Dimensions Squareness Price
mm p-p/µm HUF
906.436 ø 80 x 200 3 C07.208.HOD.20250410
906.437 ø 80 x 315 4
906.438 ø 100 x 500 5
906.439 ø 140 x 800 7
