www.hod-industrial.hu SQUARES

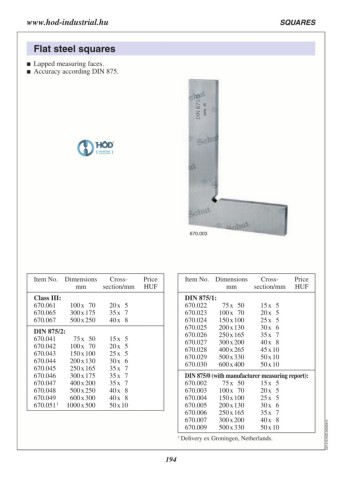

Flat steel squares
Lapped measuring faces.
Accuracy according DIN 875.
670.003
Item No. Dimensions Cross- Price Item No. Dimensions Cross- Price
mm section/mm HUF mm section/mm HUF
Class III: 100 x 70 20 x 5 DIN 875/1:
670.061 300 x 175 35 x 7 670.022 75 x 50 15 x 5
670.065 500 x 250 40 x 8 670.023 100 x 70 20 x 5
670.067 670.024 150 x 100 25 x 5
670.025 200 x 130 30 x 6
DIN 875/2: 15 x 5 670.026 250 x 165 35 x 7
670.041 75 x 50 20 x 5 670.027 300 x 200 40 x 8
670.042 100 x 70 25 x 5 670.028 400 x 265 45 x 10
670.043 150 x 100 30 x 6 670.029 500 x 330 50 x 10
670.044 200 x 130 35 x 7 670.030 600 x 400 50 x 10
670.045 250 x 165 35 x 7 DIN 875/0 (with manufacturer measuring report):
670.046 300 x 175 35 x 7 670.002 75 x 50 15 x 5
670.047 400 x 200 40 x 8 670.003 100 x 70 20 x 5
670.048 500 x 250 40 x 8 670.004 150 x 100 25 x 5
670.049 600 x 300 50 x 10 670.005 200 x 130 30 x 6
670.051 1 1000 x 500 670.006 250 x 165 35 x 7
670.007 300 x 200 40 x 8
670.009 500 x 330 50 x 10 C07.210.HOD.20250410
1 Delivery ex Groningen, Netherlands.
