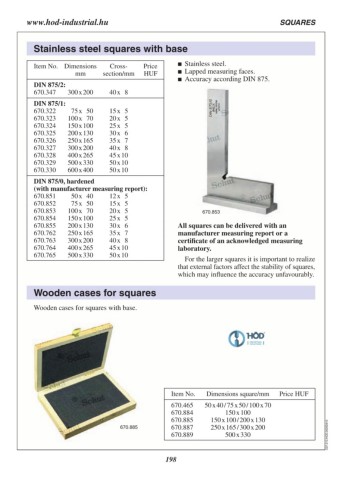

P. 198
www.hod-industrial.hu SQUARES
Stainless steel squares with base
Item No. Dimensions Cross- Price Stainless steel.
mm section/mm HUF Lapped measuring faces.
Accuracy according DIN 875.
DIN 875/2:
670.347 300 x 200 40 x 8 670.853
DIN 875/1:
670.322 75 x 50 15 x 5 All squares can be delivered with an
670.323 100 x 70 20 x 5 manufacturer measuring report or a
670.324 150 x 100 25 x 5 certificate of an acknowledged measuring
670.325 200 x 130 30 x 6 laboratory.
670.326 250 x 165 35 x 7
670.327 300 x 200 40 x 8 For the larger squares it is important to realize
670.328 400 x 265 45 x 10 that external factors affect the stability of squares,
670.329 500 x 330 50 x 10 which may influence the accuracy unfavourably.
670.330 600 x 400 50 x 10
DIN 875/0, hardened
(with manufacturer measuring report):
670.851 50 x 40 12 x 5
670.852 75 x 50 15 x 5
670.853 100 x 70 20 x 5
670.854 150 x 100 25 x 5
670.855 200 x 130 30 x 6
670.762 250 x 165 35 x 7
670.763 300 x 200 40 x 8
670.764 400 x 265 45 x 10
670.765 500 x 330 50 x 10
Wooden cases for squares
Wooden cases for squares with base.
Item No. Dimensions square/mm Price HUF
670.465 50 x 40 / 75 x 50 / 100 x 70
670.885 670.884 C07.213.HOD.20250410
670.885 150 x 100
670.887 150 x 100 / 200 x 130
670.889 250 x 165 / 300 x 200
500 x 330
198
