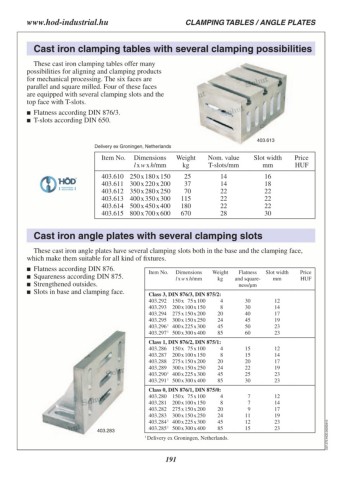

Cast iron clamping tables with several clamping possibilities
These cast iron clamping tables offer many
possibilities for aligning and clamping products
for mechanical processing. The six faces are
parallel and square milled. Four of these faces
are equipped with several clamping slots and the
top face with T‑slots.
Flatness according DIN 876/3.
T‑slots according DIN 650.
403.613
Delivery ex Groningen, Netherlands
Item No. Dimensions Weight Nom. value Slot width Price
l x w x h/mm kg T‑slots/mm mm HUF
403.610 250 x 180 x 150 25 14 16
403.611 300 x 220 x 200 37 14 18
403.612 350 x 280 x 250 70 22 22
403.613 400 x 350 x 300 115 22 22
403.614 500 x 450 x 400 180 22 22
403.615 800 x 700 x 600 670 28 30
Cast iron angle plates with several clamping slots
These cast iron angle plates have several clamping slots both in the base and the clamping face,
which make them suitable for all kind of fixtures.
Flatness according DIN 876. Item No. Dimensions Weight Flatness Slot width Price
Squareness according DIN 875. l x w x h/mm kg and square- mm HUF
Strengthened outsides. ness/µm
Slots in base and clamping face.
Class 3, DIN 876/3, DIN 875/2:
403.292 150 x 75 x 100 4 30 12
403.293 200 x 100 x 150 8 30 14
403.294 275 x 150 x 200 20 40 17
403.295 300 x 150 x 250 24 45 19
403.296 1 400 x 225 x 300 45 50 23
403.297 1 500 x 300 x 400 85 60 23
Class 1, DIN 876/2, DIN 875/1: 12
403.286 150 x 75 x 100 4 15 14
403.287 200 x 100 x 150 8 15 17
403.288 275 x 150 x 200 20 20 19
403.289 300 x 150 x 250 24 22 23
403.290 1 400 x 225 x 300 45 25 23
403.291 1 500 x 300 x 400 85 30
403.283 Class 0, DIN 876/1, DIN 875/0: 7 12 C07.272.HOD.20250410
403.280 150 x 75 x 100 4 7 14
403.281 200 x 100 x 150 8 9 17
403.282 275 x 150 x 200 20 11 19
403.283 300 x 150 x 250 24 12 23
403.284 1 400 x 225 x 300 45 15 23
403.285 1 500 x 300 x 400 85
1 Delivery ex Groningen, Netherlands.
