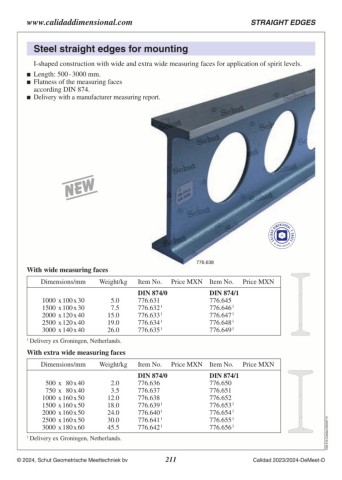

Page 211 - Schut Catalog
P. 211
www.calidaddimensional.com STRAIGHT EDGES
Steel straight edges for mounting
I‑shaped construction with wide and extra wide measuring faces for application of spirit levels.
Length: 500 - 3000 mm.
Flatness of the measuring faces
according DIN 874.
Delivery with a manufacturer measuring report.
776.638
With wide measuring faces
Dimensions/mm Weight/kg Item No. Price MXN Item No. Price MXN
DIN 874/0 D IN 874/1
7 76.631 7 76.645
1000 x 100 x 30 5.0 776.632 1 7 76.646 1
1500 x 100 x 30 7.5 7 76.633 1 7 76.647 1
2000 x 120 x 40 15.0 7 76.634 1 7 76.648 1
2500 x 120 x 40 19.0 776.635 1 776.649 1
3000 x 140 x 40 26.0
1 Delivery ex Groningen, Netherlands.
With extra wide measuring faces
Dimensions/mm Weight/kg I tem No. Price MXN I tem No. Price MXN
D IN 874/0 DIN 874/1
776.636 776.650 C09.310.Calidad.20240712
500 x 80 x 40 2.0 776.637 776.651
750 x 80 x 40 3.5 7 76.638 776.652
1000 x 160 x 50 12.0 776.639 1 7 76.653 1
1500 x 160 x 50 18.0 776.640 1 776.654 1
2000 x 160 x 50 24.0 776.641 1 776.655 1
2500 x 160 x 50 30.0 7 76.642 1 7 76.656 1
3000 x 180 x 60 45.5
1 Delivery ex Groningen, Netherlands.
