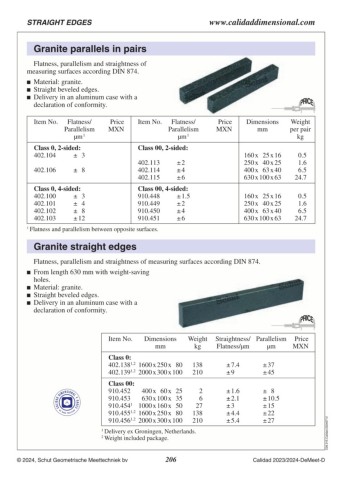

Page 206 - Schut Catalog

STRAIGHT EDGES www.calidaddimensional.com

Granite parallels in pairs

Flatness, parallelism and straightness of
measuring surfaces according DIN 874.
 Material: granite.
 Straight beveled edges.
 Delivery in an aluminum case with a

declaration of conformity.

Item No. Flatness/ Price Item No. Flatness/ Price Dimensions Weight
Parallelism MXN Parallelism MXN mm per pair
µm 1 µm 1 kg

Class 0, 2-sided: Class 00, 2-sided: 160 x 25 x 16 0.5
402.104 ± 3 250 x 40 x 25 1.6
400 x 63 x 40 6.5
402.113 ± 2 630 x 100 x 63 24.7
402.106 ± 8 402.114 ± 4
402.115 ± 6

Class 0, 4-sided: Class 00, 4-sided: 160 x 25 x 16 0.5
402.100 ± 3 910.448 ± 1.5 250 x 40 x 25 1.6
402.101 ± 4 910.449 ± 2 400 x 63 x 40 6.5
402.102 ± 8 910.450 ± 4 630 x 100 x 63 24.7
402.103 ± 12 910.451 ± 6

1 Flatness and parallelism between opposite surfaces.

Granite straight edges

Flatness, parallelism and straightness of measuring surfaces according DIN 874.
 From length 630 mm with weight-saving

holes.
 Material: granite.
 Straight beveled edges.
 Delivery in an aluminum case with a

declaration of conformity.

Item No. Dimensions Weight Straightness/ Parallelism Price
mm kg Flatness/µm µm MXN

Class 0: ± 7.4 ± 37
402.1381,2 1600 x 250 x 80 138 ± 9 ± 45
402.1391,2 2000 x 300 x 100 210

Class 00: 2 ± 1.6 ± 8 C09.315.Calidad.20240712
910.452 400 x 60 x 25 6 ± 2.1 ± 10.5
910.453 630 x 100 x 35 27 ± 3 ± 15
910.4541 1000 x 160 x 50 138 ± 4.4 ± 22
910.4551,2 1600 x 250 x 80 210 ± 5.4 ± 27
910.4561,2 2000 x 300 x 100

1 Delivery ex Groningen, Netherlands.
2 Weight included package.
