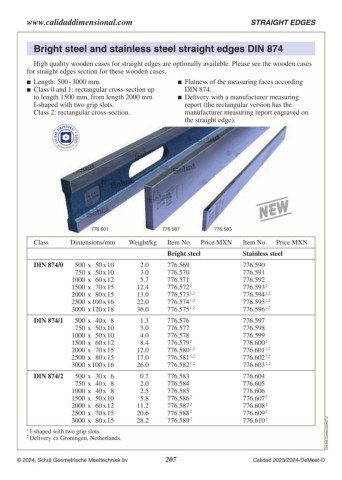

www.calidaddimensional.com STRAIGHT EDGES
Bright steel and stainless steel straight edges DIN 874
High quality wooden cases for straight edges are optionally available. Please see the wooden cases
for straight edges section for these wooden cases.
Length: 500 - 3000 mm. Flatness of the measuring faces according
Class 0 and 1: rectangular cross-section up DIN 874.
to length 1500 mm, from length 2000 mm Delivery with a manufacturer measuring
I‑shaped with two grip slots. report (the rectangular version has the
Class 2: rectangular cross-section. manufacturer measuring report engraved on
the straight edge).
776.601 776.587 776.583
Class Dimensions/mm Weight/kg I tem No. Price MXN Item No. Price MXN
Bright steel S tainless steel
776.569 7 76.590
776.570 776.591
DIN 874/0 500 x 50 x 10 2.0 776.571 776.592
750 x 50 x 10 3.0 7 76.572 2 776.593 2
1000 x 60 x 12 5.7 776.573 1,2 7 76.594 1,2
1500 x 70 x 15 12.4 7 76.574 1,2 776.595 1,2
2000 x 80 x 15 13.0 776.575 1,2 776.596 1,2
2500 x 100 x 16 22.0 776.576 776.597
3000 x 120 x 18 36.0 776.577 7 76.598
776.578 7 76.599
DIN 874/1 500 x 40 x 8 1.3 7 76.579 2 7 76.600 2
750 x 50 x 10 3.0 776.580 1,2 776.601 1,2
1000 x 50 x 10 4.0 7 76.581 1,2 776.602 1,2
1500 x 60 x 12 8.4 776.582 1,2 7 76.603 1,2
2000 x 70 x 15 12.0 7 76.583 7 76.604
2500 x 80 x 15 17.0 7 76.584 7 76.605
3000 x 100 x 16 26.0 7 76.585 776.606
776.586 2 776.607 2
DIN 874/2 500 x 30 x 6 0.7 776.587 2 776.608 2 C09.308.Calidad.20240712
750 x 40 x 8 2.0 7 76.588 2 776.609 2
1000 x 40 x 8 2.5 7 76.589 2 7 76.610 2
1500 x 50 x 10 5.8
2000 x 60 x 12 11.2
2500 x 70 x 15 20.6
3000 x 80 x 15 28.2
1 I-shaped with two grip slots.
2 Delivery ex Groningen, Netherlands.
