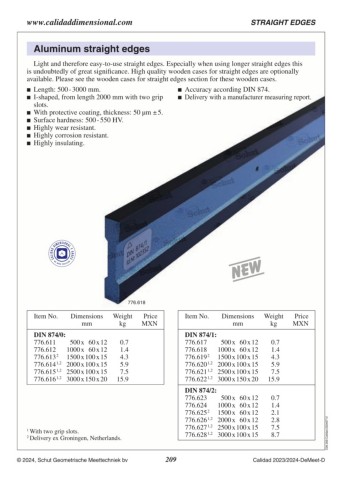

Page 209 - Schut Catalog
P. 209
www.calidaddimensional.com STRAIGHT EDGES
Aluminum straight edges
Light and therefore easy-to-use straight edges. Especially when using longer straight edges this
is undoubtedly of great significance. High quality wooden cases for straight edges are optionally
available. Please see the wooden cases for straight edges section for these wooden cases.
Length: 500 - 3000 mm. Accuracy according DIN 874.
I-shaped, from length 2000 mm with two grip Delivery with a manufacturer measuring report.
slots.
With protective coating, thickness: 50 µm ± 5.
Surface hardness: 500 - 550 HV.
Highly wear resistant.
Highly corrosion resistant.
Highly insulating.
776.618
Item No. Dimensions Weight Price Item No. Dimensions Weight Price
mm kg MXN mm kg MXN
DIN 874/0: 0.7 DIN 874/1: 0.7
776.611 500 x 60 x 12 1.4 776.617 500 x 60 x 12 1.4
776.612 1000 x 60 x 12 4.3 776.618 1000 x 60 x 12 4.3
776.613 2 1500 x 100 x 15 5.9 776.619 2 1500 x 100 x 15 5.9
776.614 1,2 2000 x 100 x 15 7.5 776.620 1,2 2000 x 100 x 15 7.5
776.615 1,2 2500 x 100 x 15 15.9 776.621 1,2 2500 x 100 x 15 15.9
776.616 1,2 3000 x 150 x 20 776.622 1,2 3000 x 150 x 20
1 With two grip slots. DIN 874/2: 0.7 C09.309.Calidad.20240712
2 Delivery ex Groningen, Netherlands. 776.623 500 x 60 x 12 1.4
776.624 1000 x 60 x 12 2.1
776.625 2 1500 x 60 x 12 2.8
776.626 1,2 2000 x 60 x 12 7.5
776.627 1,2 2500 x 100 x 15 8.7
776.628 1,2 3000 x 100 x 15
