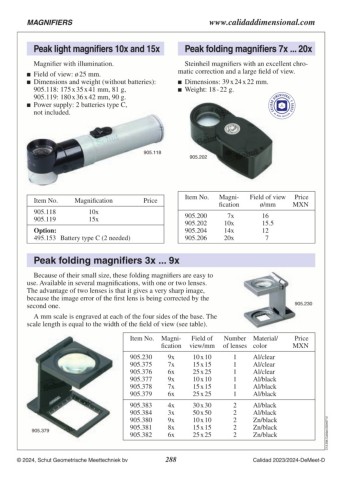

P. 288
MAGNIFIERS www.calidaddimensional.com
Peak light magnifiers 10x and 15x Peak folding magnifiers 7x ... 20x
Magnifier with illumination. Steinheil magnifiers with an excellent chro
Field of view: ø 25 mm. matic correction and a large field of view.
Dimensions and weight (without batteries): Dimensions: 39 x 24 x 22 mm.
Weight: 18 - 22 g.
905.118: 175 x 35 x 41 mm, 81 g,
905.119: 180 x 36 x 42 mm, 90 g.
Power supply: 2 batteries type C,
not included.
905.118 905.202
Item No. Magnification Price Item No. Magni- Field of view Price
fication ø/mm MXN
905.118 10x
905.119 15x 905.200 7x 16
905.202 10x 15.5
Option: 905.204 14x 12
495.153 Battery type C (2 needed) 905.206 20x 7
Peak folding magnifiers 3x ... 9x
Because of their small size, these folding magnifiers are easy to 905.230
use. Available in several magnifications, with one or two lenses.
The advantage of two lenses is that it gives a very sharp image, Price
because the image error of the first lens is being corrected by the MXN
second one.
A mm scale is engraved at each of the four sides of the base. The
scale length is equal to the width of the field of view (see table).
Item No. Magni- Field of Number Material/
fication view/mm of lenses color
905.230 9x 10 x 10 1 Al/clear
905.375 7x 15 x 15 1 Al/clear
905.376 6x 25 x 25 1 Al/clear
905.377 9x 10 x 10 1 Al/black
905.378 7x 15 x 15 1 Al/black
905.379 6x 25 x 25 1 Al/black
905.379 905.383 4x 30 x 30 2 Al/black C13.206.Calidad.20240712
905.384 3x 50 x 50 2 Al/black
905.380 9x 10 x 10 2 Zn/black
905.381 8x 15 x 15 2 Zn/black
905.382 6x 25 x 25 2 Zn/black
