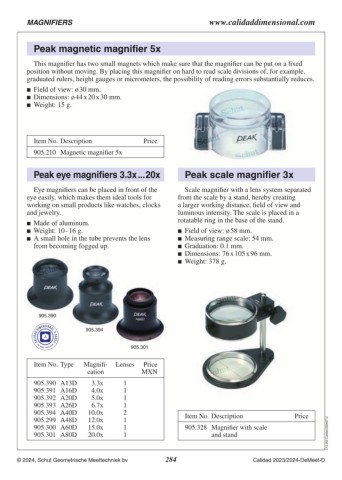

P. 284
MAGNIFIERS www.calidaddimensional.com
Peak magnetic magnifier 5x
This magnifier has two small magnets which make sure that the magnifier can be put on a fixed
position without moving. By placing this magnifier on hard to read scale divisions of, for example,
graduated rulers, height gauges or micrometers, the possibility of reading errors substantially reduces.
Field of view: ø 30 mm.
Dimensions: ø 44 x 20 x 30 mm.
Weight: 15 g.
Item No. Description Price
905.210 Magnetic magnifier 5x
Peak eye magnifiers 3.3x ... 20x Peak scale magnifier 3x
Eye magnifiers can be placed in front of the Scale magnifier with a lens system separated
eye easily, which makes them ideal tools for from the scale by a stand, hereby creating
working on small products like watches, clocks a larger working distance, field of view and
and jewelry. luminous intensity. The scale is placed in a
Made of aluminum. rotatable ring in the base of the stand.
Weight: 10 - 16 g. Field of view: ø 58 mm.
A small hole in the tube prevents the lens Measuring range scale: 54 mm.
Graduation: 0.1 mm.
from becoming fogged up. Dimensions: 76 x 105 x 96 mm.
Weight: 378 g.
905.390
905.394
905.301
Item No. Type Magnifi- Lenses Price
cation MXN
905.390 A13D 3.3x 1 Item No. Description Price C13.202.Calidad.20240712
905.391 A16D 4.0x 1 905.328 Magnifier with scale
905.392 A20D 5.0x 1
905.393 A26D 6.7x 1 and stand
905.394 A40D 10.0x 2
905.299 A48D 12.0x 1
905.300 A60D 15.0x 1
905.301 A80D 20.0x 1
