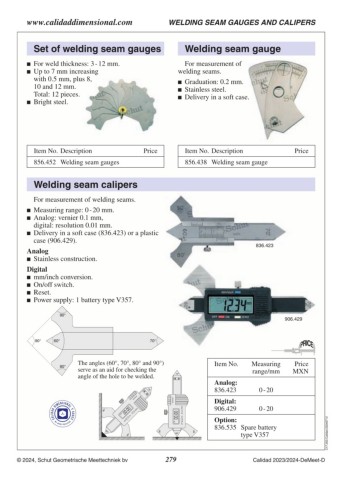

www.calidaddimensional.com WELDING SEAM GAUGES AND CALIPERS
Set of welding seam gauges Welding seam gauge
For weld thickness: 3 - 12 mm. For measurement of
Up to 7 mm increasing welding seams.
Graduation: 0.2 mm.
with 0.5 mm, plus 8, Stainless steel.
10 and 12 mm. Delivery in a soft case.
Total: 12 pieces.
Bright steel.
Item No. Description Price Item No. Description Price
856.452 Welding seam gauges 856.438 Welding seam gauge
Welding seam calipers 836.423
906.429
For measurement of welding seams.
Measuring range: 0 - 20 mm.
Analog: vernier 0.1 mm,
digital: resolution 0.01 mm.
Delivery in a soft case (836.423) or a plastic
case (906.429).
Analog
Stainless construction.
Digital
mm/inch conversion.
On/off switch.
Reset.
Power supply: 1 battery type V357.
90°
90° 60° 70°
The angles (60°, 70°, 80° and 90°) 70° Item No. Measuring Price
80° serve as an aid for checking the range/mm MXN
angle of the hole to be welded.
Analog:
70° 836.423 0 - 20
60°
mm/inch mm/inch Digital:
906.429
mm00.00 ZERO ZERO 0 - 20
90° ON mm 00.00
OFF OFF ON Option: C17.203.Calidad.20240712
836.535 Spare battery
90° 60° 80°
type V357
80°
