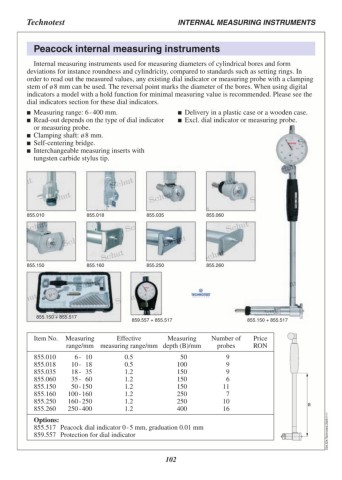

Peacock internal measuring instruments

Internal measuring instruments used for measuring diameters of cylindrical bores and form
deviations for instance roundness and cylindricity, compared to standards such as setting rings. In
order to read out the measured values, any existing dial indicator or measuring probe with a clamping
stem of ø 8 mm can be used. The reversal point marks the diameter of the bores. When using digital
indicators a model with a hold function for minimal measuring value is recommended. Please see the
dial indicators section for these dial indicators.

 Measuring range: 6 - 400 mm.  Delivery in a plastic case or a wooden case.
 Read-out depends on the type of dial indicator  Excl. dial indicator or measuring probe.

or measuring probe.
 Clamping shaft: ø 8 mm.
 Self-centering bridge.
 Interchangeable measuring inserts with

tungsten carbide stylus tip.

855.010 855.018 855.035 855.060

855.150 855.160 855.250 855.260

855.150 + 855.517 859.557 + 855.517 855.150 + 855.517

Item No. Measuring Effective Measuring Number of Price
range/mm measuring range/mm depth (B)/mm probes RON

855.010 6 - 10 0.5 50 9 B
855.018 10 - 18 0.5 100 9
855.035 18 - 35 1.2 150 9 C04.224.Technotest.20251111
855.060 35 - 60 1.2 150 6
855.150 50 - 150 1.2 150 11
855.160 100 - 160 1.2 250 7
855.250 160 - 250 1.2 250 10
855.260 250 - 400 1.2 400 16

Options:
855.517 Peacock dial indicator 0 - 5 mm, graduation 0.01 mm
859.557 Protection for dial indicator
