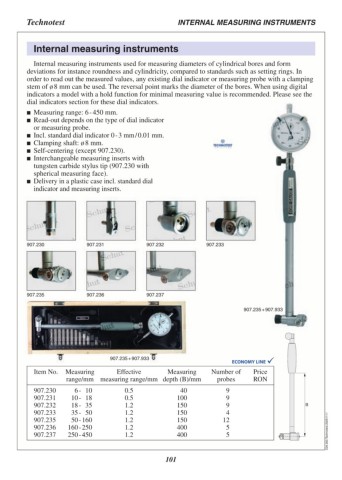

Technotest INTERNAL MEASURING INSTRUMENTS

Internal measuring instruments

Internal measuring instruments used for measuring diameters of cylindrical bores and form
deviations for instance roundness and cylindricity, compared to standards such as setting rings. In
order to read out the measured values, any existing dial indicator or measuring probe with a clamping
stem of ø 8 mm can be used. The reversal point marks the diameter of the bores. When using digital
indicators a model with a hold function for minimal measuring value is recommended. Please see the
dial indicators section for these dial indicators.
 Measuring range: 6 - 450 mm.
 Read-out depends on the type of dial indicator

or measuring probe.
 Incl. standard dial indicator 0 - 3 mm / 0.01 mm.
 Clamping shaft: ø 8 mm.
 Self-centering (except 907.230).
 Interchangeable measuring inserts with

tungsten carbide stylus tip (907.230 with
spherical measuring face).
 Delivery in a plastic case incl. standard dial
indicator and measuring inserts.

907.230 907.231 907.232 907.233

907.235 907.236 907.237

907.235 + 907.933

907.235 + 907.933

Item No. Measuring Effective Measuring Number of Price
range/mm measuring range/mm depth (B)/mm probes RON
9
907.230 6 - 10 0.5 40 9 B
907.231 10 - 18 0.5 100 9
907.232 18 - 35 1.2 150 4 C04.303.Technotest.20251111
907.233 35 - 50 1.2 150 12
907.235 50 - 160 1.2 150 5
907.236 160 - 250 1.2 400 5
907.237 250 - 450 1.2 400
