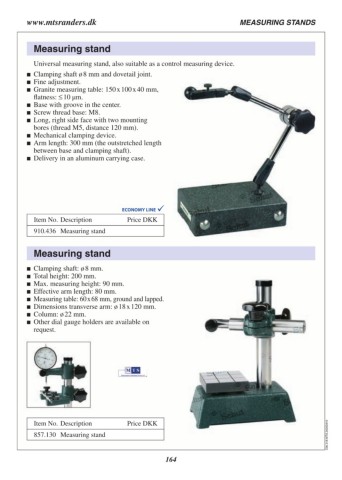

Measuring stand
Universal measuring stand, also suitable as a control measuring device.
Clamping shaft ø 8 mm and dovetail joint.
Fine adjustment.
Granite measuring table: 150 x 100 x 40 mm,
flatness: ≤ 10 µm.
Base with groove in the center.
Screw thread base: M8.
Long, right side face with two mounting
bores (thread M5, distance 120 mm).
Mechanical clamping device.
Arm length: 300 mm (the outstretched length
between base and clamping shaft).
Delivery in an aluminum carrying case.
Item No. Description Price DKK
910.436 Measuring stand
Measuring stand
Clamping shaft: ø 8 mm.
Total height: 200 mm.
Max. measuring height: 90 mm.
Effective arm length: 80 mm.
Measuring table: 60 x 68 mm, ground and lapped.
Dimensions transverse arm: ø 18 x 120 mm.
Column: ø 22 mm.
Other dial gauge holders are available on
request.
Item No. Description Price DKK C06.318.MTS.20250410
857.130 Measuring stand 164
