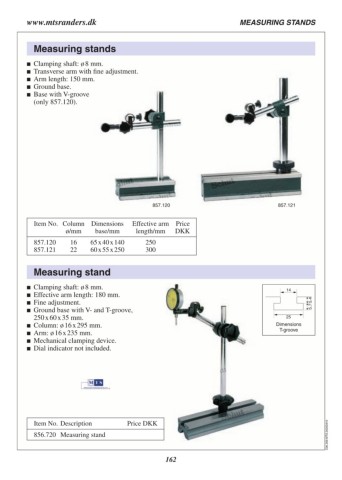

Page 162 - Schut Catalog
P. 162
www.mtsranders.dk MEASURING STANDS
Measuring stands
Clamping shaft: ø 8 mm.
Transverse arm with fine adjustment.
Arm length: 150 mm.
Ground base.
Base with V‑groove
(only 857.120).
857.120 857.121
Item No. Column Dimensions Effective arm Price 14
ø/mm base/mm length/mm DKK 25
Dimensions
857.120 16 65 x 40 x 140 250 T-groove
857.121 22 60 x 55 x 250 300
Measuring stand 5.7 5.4
Clamping shaft: ø 8 mm.
Effective arm length: 180 mm.
Fine adjustment.
Ground base with V‑ and T‑groove,
250 x 60 x 35 mm.
Column: ø 16 x 295 mm.
Arm: ø 16 x 235 mm.
Mechanical clamping device.
Dial indicator not included.
Item No. Description Price DKK C06.209.MTS.20250410
856.720 Measuring stand 162
