www.mtsranders.dk SURFACE PLATES

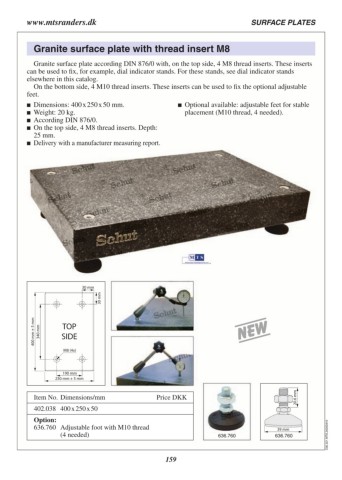

Granite surface plate with thread insert M8
Granite surface plate according DIN 876/0 with, on the top side, 4 M8 thread inserts. These inserts
can be used to fix, for example, dial indicator stands. For these stands, see dial indicator stands
elsewhere in this catalog.
On the bottom side, 4 M10 thread inserts. These inserts can be used to fix the optional adjustable
feet.
Dimensions: 400 x 250 x 50 mm. Optional available: adjustable feet for stable
Weight: 20 kg. placement (M10 thread, 4 needed).
According DIN 876/0.
On the top side, 4 M8 thread inserts. Depth:
25 mm.
Delivery with a manufacturer measuring report.
30 mm
TOP400 mm ± 5 mm
SIDE340 mm
30 mm
M8 (4x)
20.6 mm
190 mm
250 mm ± 5 mm C06.321.MTS.20250410
Item No. Dimensions/mm Price DKK
402.038 400 x 250 x 50
Option: 636.760 39 mm
636.760 Adjustable foot with M10 thread 636.760
(4 needed)
