P. 276
www.hod-industrial.hu GAUGES

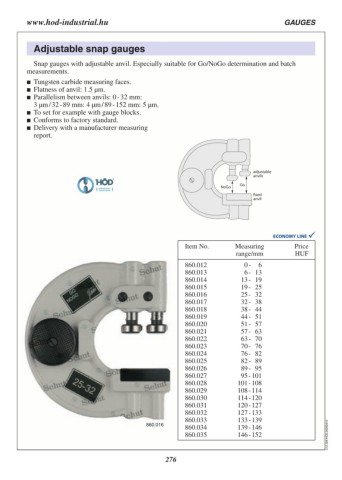

Adjustable snap gauges
Snap gauges with adjustable anvil. Especially suitable for Go/NoGo determination and batch
measurements.
Tungsten carbide measuring faces.
Flatness of anvil: 1.5 µm.
Parallelism between anvils: 0 - 32 mm:
3 µm / 32 - 89 mm: 4 µm / 89 - 152 mm: 5 µm.
To set for example with gauge blocks.
Conforms to factory standard.
Delivery with a manufacturer measuring
report.
NoGo adjustable
anvils
Go
fixed
anvil
Item No. Measuring Price
860.012 range/mm HUF
860.013
860.016 860.014 0 - 6 C12.309.HOD.20250410
860.015 6 - 13
860.016 13 - 19
860.017 19 - 25
860.018 25 - 32
860.019 32 - 38
860.020 38 - 44
860.021 44 - 51
860.022 51 - 57
860.023 57 - 63
860.024 63 - 70
860.025 70 - 76
860.026 76 - 82
860.027 82 - 89
860.028 89 - 95
860.029 95 - 101
860.030 101 - 108
860.031 108 - 114
860.032 114 - 120
860.033 120 - 127
860.034 127 - 133
860.035 133 - 139
139 - 146
146 - 152
