www.hod-industrial.hu SPIRIT LEVELS

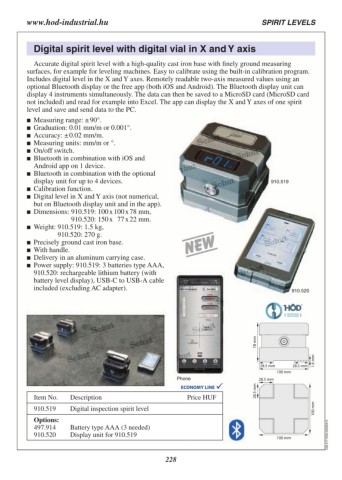

Digital spirit level with digital vial in X and Y axis
Accurate digital spirit level with a high-quality cast iron base with finely ground measuring
surfaces, for example for leveling machines. Easy to calibrate using the built-in calibration program.
Includes digital level in the X and Y axes. Remotely readable two-axis measured values u sing an
optional Bluetooth display or the free app (both iOS and Android). The Bluetooth display unit can
display 4 instruments simultaneously. The data can then be saved to a MicroSD card (MicroSD card
not included) and read for example into Excel. The app can display the X and Y axes of one spirit
level and save and send data to the PC.
Measuring range: ± 90°. 910.519
Graduation: 0.01 mm/m or 0.001°. 910.520
Accuracy: ± 0.02 mm/m.
Measuring units: mm/m or °.
On/off switch.
Bluetooth in combination with iOS and
Android app on 1 device.
Bluetooth in combination with the optional
display unit for up to 4 devices.
Calibration function.
Digital level in X and Y axis (not numerical,
but on Bluetooth display unit and in the app).
Dimensions: 910.519: 100 x 100 x 78 mm,
910.520: 150 x 77 x 22 mm.
Weight: 910.519: 1.5 kg,
910.520: 270 g.
Precisely ground cast iron base.
With handle.
Delivery in an aluminum carrying case.
Power supply: 910.519: 3 batteries type AAA,
910.520: rechargeable lithium battery (with
battery level display), USB-C to USB-A cable
included (excluding AC adapter).
78 mm
28.5 mm 28.5 mm 1.6 mm
100 mm
Phone 28.5 mm
Item No. Description Price HUF 28.5 mm
910.519 Digital inspection spirit level
Options: 100 mm 100 mm
497.914 Battery type AAA (3 needed)
910.520 Display unit for 910.519 C08.317.HOD.20250410
