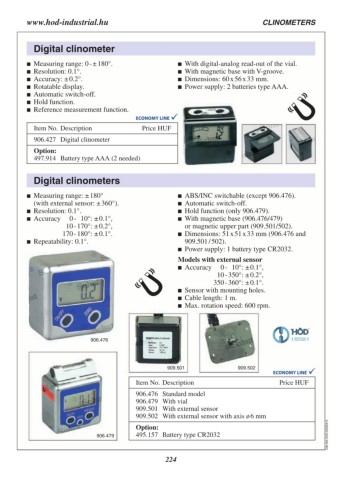

Page 224 - Schut Catalog
P. 224
www.hod-industrial.hu CLINOMETERS
Digital clinometer With digital-analog read-out of the vial.
With magnetic base with V‑groove.
Measuring range: 0 - ± 180°. Dimensions: 60 x 56 x 33 mm.
Resolution: 0.1°. Power supply: 2 batteries type AAA.
Accuracy: ± 0.2°.
Rotatable display.
Automatic switch-off.
Hold function.
Reference measurement function.
Item No. Description Price HUF
906.427 Digital clinometer
Option:
497.914 Battery type AAA (2 needed)
Digital clinometers ABS/INC switchable (except 906.476).
Automatic switch-off.
Measuring range: ± 180° Hold function (only 906.479).
(with external sensor: ± 360°). With magnetic base (906.476/479)
Resolution: 0.1°. or magnetic upper part (909.501/502).
Accuracy 0 - 10°: ± 0.1°, Dimensions: 51 x 51 x 33 mm (906.476 and
10 - 170°: ± 0.2°, 909.501 / 502).
170 - 180°: ± 0.1°. Power supply: 1 battery type CR2032.
Repeatability: 0.1°. Models with external sensor
Accuracy 0 - 10°: ± 0.1°,
10 - 350°: ± 0.2°,
350 - 360°: ± 0.1°.
Sensor with mounting holes.
Cable length: 1 m.
Max. rotation speed: 600 rpm.
906.476
909.501 909.502
Item No. Description Price HUF
906.476 Standard model
906.479 906.479 With vial C08.304.HOD.20250410
909.501 With external sensor
909.502 With external sensor with axis ø 6 mm
Option:
495.157 Battery type CR2032
224
