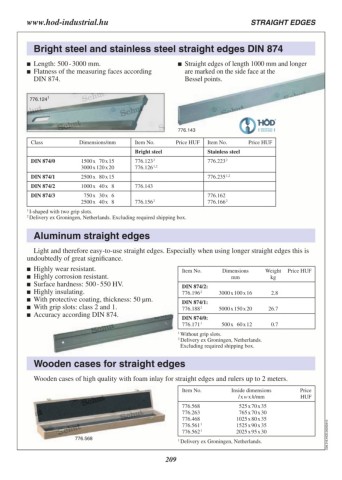

Page 209 - Schut Catalog

www.hod-industrial.hu STRAIGHT EDGES

Bright steel and stainless steel straight edges DIN 874

 Length: 500 - 3000 mm.  Straight edges of length 1000 mm and longer
 Flatness of the measuring faces according are marked on the side face at the
Bessel points.
DIN 874.

776.1241

776.143

Class Dimensions/mm Item No. Price HUF Item No. Price HUF
Stainless steel
Bright steel 776.223 2

DIN 874/0 1500 x 70 x 15 776.123 2 776.235 1,2
3000 x 120 x 20 776.126 1,2
776.162
DIN 874/1 2500 x 80 x 15 776.166 2

DIN 874/2 1000 x 40 x 8 776.143

DIN 874/3 750 x 30 x 6 776.156 2
2500 x 40 x 8

1 I-shaped with two grip slots.
2 Delivery ex Groningen, Netherlands. Excluding required shipping box.

Aluminum straight edges

Light and therefore easy-to-use straight edges. Especially when using longer straight edges this is
undoubtedly of great significance.

 Highly wear resistant. Item No. Dimensions Weight Price HUF
 Highly corrosion resistant. mm kg
 Surface hardness: 500 - 550 HV. DIN 874/2:
 Highly insulating. 776.196 2 3000 x 100 x 16 2.8
 With protective coating, thickness: 50 µm. DIN 874/1:
 With grip slots: class 2 and 1. 776.188 2 5000 x 150 x 20 26.7
 Accuracy according DIN 874. DIN 874/0:
776.171 1 500 x 60 x 12 0.7

1 Without grip slots.
2 Delivery ex Groningen, Netherlands.
Excluding required shipping box.

Wooden cases for straight edges

Wooden cases of high quality with foam inlay for straight edges and rulers up to 2 meters.

Item No. Inside dimensions Price
l x w x h/mm HUF

776.568 525 x 70 x 35 C09.316.HOD.20250410
776.263 765 x 70 x 30
776.468 1025 x 80 x 35
776.561 1 1525 x 90 x 35
776.562 1 2025 x 95 x 30

776.568 1 Delivery ex Groningen, Netherlands.

209
