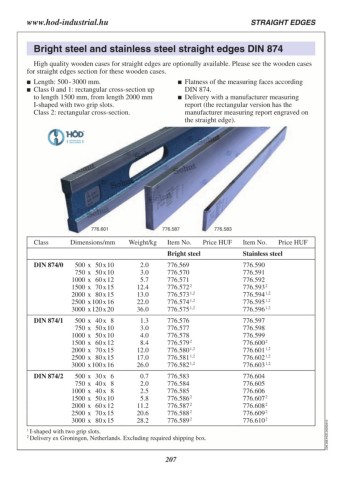

www.hod-industrial.hu STRAIGHT EDGES
Bright steel and stainless steel straight edges DIN 874
High quality wooden cases for straight edges are optionally available. Please see the wooden cases
for straight edges section for these wooden cases.
Length: 500 - 3000 mm. Flatness of the measuring faces according
Class 0 and 1: rectangular cross-section up DIN 874.
to length 1500 mm, from length 2000 mm Delivery with a manufacturer measuring
I‑shaped with two grip slots. report (the rectangular version has the
Class 2: rectangular cross-section. manufacturer measuring report engraved on
the straight edge).
776.601 776.587 776.583
Class Dimensions/mm Weight/kg I tem No. Price HUF Item No. Price HUF
Stainless steel
B right steel 776.590
776.591
DIN 874/0 500 x 50 x 10 2.0 776.569 776.592
750 x 50 x 10 3.0 776.570 7 76.593 2
1000 x 60 x 12 5.7 776.571 7 76.594 1,2
1500 x 70 x 15 12.4 776.572 2 776.595 1,2
2000 x 80 x 15 13.0 7 76.573 1,2 776.596 1,2
2500 x 100 x 16 22.0 7 76.574 1,2 7 76.597
3000 x 120 x 20 36.0 776.575 1,2 776.598
7 76.599
DIN 874/1 500 x 40 x 8 1.3 7 76.576 7 76.600 2
750 x 50 x 10 3.0 776.577 776.601 1,2
1000 x 50 x 10 4.0 776.578 776.602 1,2
1500 x 60 x 12 8.4 7 76.579 2 7 76.603 1,2
2000 x 70 x 15 12.0 776.580 1,2 7 76.604
2500 x 80 x 15 17.0 7 76.581 1,2 7 76.605
3000 x 100 x 16 26.0 7 76.582 1,2 776.606
776.607 2
DIN 874/2 500 x 30 x 6 0.7 7 76.583 7 76.608 2 C09.308.HOD.20250410
750 x 40 x 8 2.0 776.584 776.609 2
1000 x 40 x 8 2.5 776.585 776.610 2
1500 x 50 x 10 5.8 776.586 2
2000 x 60 x 12 11.2 7 76.587 2
2500 x 70 x 15 20.6 776.588 2
3000 x 80 x 15 28.2 7 76.589 2
1 I-shaped with two grip slots.
2 Delivery ex Groningen, Netherlands. Excluding required shipping box.
