P. 83

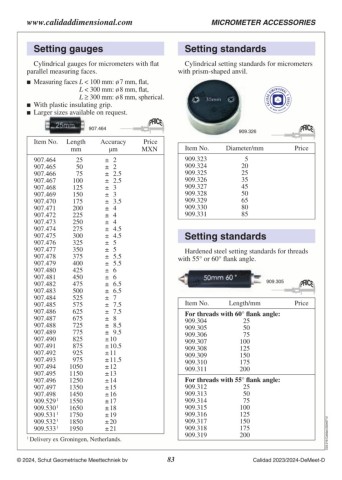

www.calidaddimensional.com MICROMETER ACCESSORIES
Setting gauges Setting standards
Cylindrical gauges for micrometers with flat Cylindrical setting standards for micrometers
parallel measuring faces. with prism-shaped anvil.
Measuring faces L < 100 mm: ø 7 mm, flat,
L < 300 mm: ø 8 mm, flat,
L ≥ 300 mm: ø 8 mm, spherical.
With plastic insulating grip.
Larger sizes available on request.
907.464 909.326
Item No. Length Accuracy Price Item No. Diameter/mm Price
mm µm MXN 909.323 5
909.324
907.464 25 ± 2 909.325 20
907.465 50 ± 2 909.326 25
907.466 75 ± 2.5 909.327 35
907.467 100 ± 2.5 909.328 45
907.468 125 ± 3 909.329 50
907.469 150 ± 3 909.330 65
907.470 175 ± 3.5 909.331 80
907.471 200 ± 4 85
907.472 225 ± 4
907.473 250 ± 4 Setting standards
907.474 275 ± 4.5
907.475 300 ± 4.5 Hardened steel setting standards for threads
907.476 325 ± 5 with 55° or 60° flank angle.
907.477 350 ± 5
907.478 375 ± 5.5 909.305
907.479 400 ± 5.5
907.480 425 ± 6 Item No. Length/mm Price
907.481 450 ± 6
907.482 475 ± 6.5 For threads with 60° flank angle:
907.483 500 ± 6.5 909.304 25
907.484 525 ± 7 909.305 50
907.485 575 ± 7.5 909.306 75
907.486 625 ± 7.5 909.307 100
907.487 675 ± 8 909.308 125
907.488 725 ± 8.5 909.309 150
907.489 775 ± 9.5 909.310 175
907.490 825 ± 10 909.311 200
907.491 875 ± 10.5
907.492 925 ± 11 For threads with 55° flank angle:
907.493 975 ± 11.5 909.312 25
907.494 1050 ± 12 909.313 50
907.495 1150 ± 13 909.314 75
907.496 1250 ± 14 909.315 100
907.497 1350 ± 15 909.316 125
907.498 1450 ± 16 909.317 150 C03.219.Calidad.20240712
909.529 1 1550 ± 17 909.318 175
909.530 1 1650 ± 18 909.319 200
909.531 1 1750 ± 19
909.532 1 1850 ± 20
909.533 1 1950 ± 21
1 Delivery ex Groningen, Netherlands.
© 2024, Schut Geometrische Meettechniek bv 83 Calidad 2023/2024-DeMeet-D
