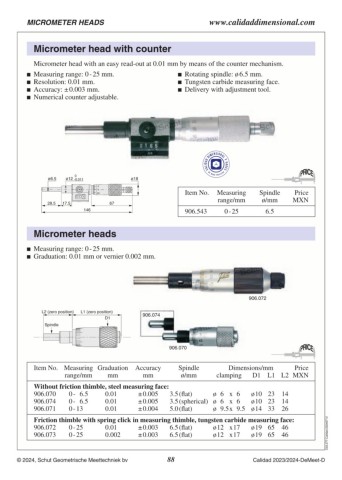

Page 88 - Schut Catalog

MICROMETER HEADS www.calidaddimensional.com

Micrometer head with counter

Micrometer head with an easy read-out at 0.01 mm by means of the counter mechanism.

 Measuring range: 0 - 25 mm.  Rotating spindle: ø 6.5 mm.
 Resolution: 0.01 mm.  Tungsten carbide measuring face.
 Accuracy: ± 0.003 mm.  Delivery with adjustment tool.
 Numerical counter adjustable.

ø6.5 ø12 0 ø18
28.5 -0.011

5 Item No. Measuring Spindle Price
0 range/mm ø/mm MXN

45 906.543 0 - 25 6.5

17.5 0 000 67

146

Micrometer heads

 Measuring range: 0 - 25 mm.
 Graduation: 0.01 mm or vernier 0.002 mm.

906.072

L2 (zero position) L1 (zero position) 906.074
Spindle D1

906.070

Item No. Measuring Graduation Accuracy Spindle Dimensions/mm Price
range/mm mm mm ø/mm clamping D1 L1 L2 MXN

Without friction thimble, steel measuring face: ø 6 x 6 ø 10 23 14
906.070 0 - 6.5 0.01 ± 0.005 3.5 (flat)
906.074 0 - 6.5 0.01 ± 0.005 3.5 (spherical) ø 6 x 6 ø 10 23 14
906.071 0 - 13 0.01 ± 0.004 5.0 (flat) ø 9.5 x 9.5 ø 14 33 26

Friction thimble with spring click in measuring thimble, tungsten carbide measuring face: C03.277.Calidad.20240712
906.072 0 - 25 0.01 ± 0.003 6.5 (flat) ø 12 x 17 ø 19 65 46
906.073 0 - 25 0.002 ± 0.003 6.5 (flat) ø 12 x 17 ø 19 65 46
