MICROMETERS www.calidaddimensional.com

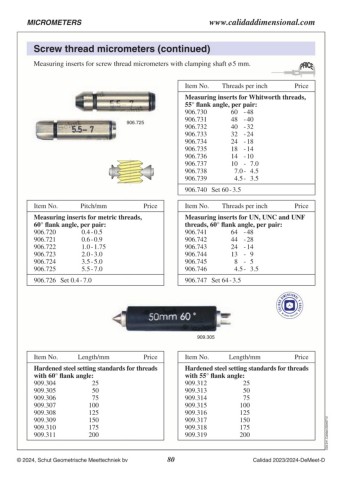

Screw thread micrometers (continued)

Measuring inserts for screw thread micrometers with clamping shaft ø 5 mm.

Item No. Threads per inch Price

Measuring inserts for Whitworth threads,
55° flank angle, per pair:
906.730 60 - 48
906.731 48 - 40
906.725 906.732 40 - 32

906.733 32 - 24
906.734 24 - 18
906.735 18 - 14
906.736 14 - 10
906.737 10 - 7.0
906.738 7.0 - 4.5
906.739 4.5 - 3.5

906.740 Set 60 - 3.5

Item No. Pitch/mm Price Item No. Threads per inch Price

Measuring inserts for metric threads, Measuring inserts for UN, UNC and UNF
60° flank angle, per pair: threads, 60° flank angle, per pair:
906.720 0.4 - 0.5 906.741 64 - 48
906.721 0.6 - 0.9 906.742 44 - 28
906.722 1.0 - 1.75 906.743 24 - 14
906.723 2.0 - 3.0 906.744 13 - 9
906.724 3.5 - 5.0 906.745 8 - 5
906.725 5.5 - 7.0 906.746 4.5 - 3.5

906.726 Set 0.4 - 7.0 906.747 Set 64 - 3.5

909.305

Item No. Length/mm Price Item No. Length/mm Price

Hardened steel setting standards for threads Hardened steel setting standards for threads
with 60° flank angle: with 55° flank angle:
909.304 25 909.312 25
909.305 50 909.313 50
909.306 75 909.314 75
909.307 100 909.315 100
909.308 125 909.316 125
909.309 150 909.317 150
909.310 175 909.318 175 C03.241.Calidad.20240712
909.311 200 909.319 200
