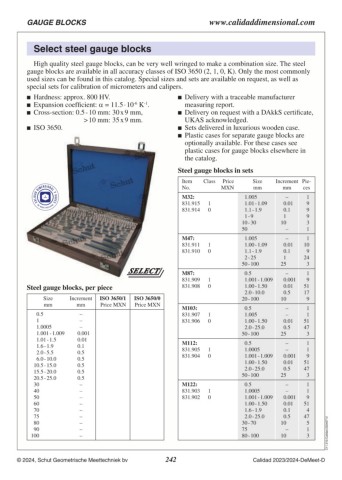

P. 242

GAUGE BLOCKS                                                               www.calidaddimensional.com

Select steel gauge blocks

  High quality steel gauge blocks, can be very well wringed to make a combination size. The steel
gauge blocks are available in all accuracy classes of ISO 3650 (2, 1, 0, K). Only the most commonly
used sizes can be found in this catalog. Special sizes and sets are available on request, as well as
special sets for calibration of micrometers and calipers.

	 Hardness: approx. 800 HV.                                 	 Delivery with a traceable manufacturer
	 Expansion coefficient: α = 11.5 · 10‑6 K‑1.                 measuring report.
	 Cross-section: 0.5 - 10 mm: 30 x 9 mm,  
                                                             	 Delivery on request with a DAkkS certificate,
  	      > 10 mm: 	35 x 9 mm.                                  UKAS acknowledged.
	 ISO 3650.
                                                             	 Sets delivered in luxurious wooden case.
                                                             	 Plastic cases for separate gauge blocks are

                                                               optionally available. For these cases see
                                                               plastic cases for gauge blocks elsewhere in
                                                               the catalog.

                                                             Steel gauge blocks in sets

                                                              Item         Class  Price  Size   Increment  Pie- 
                                                             No.                  MXN    mm mm ces

                                                              M32: 	       1               1.005        	 – 	1
                                                             831.915 	     0               1.01 - 1.09  	   0.01 	 9
                                                             831.914 	                     1.1 - 1.9    	 0.1 	 9
                                                                                           1 - 9        	 1   	 	 9
                                                                        	                10 - 30        	 10     	 	 3
                                                                        	                50             	 – 	1


                                                              M47: 	       1               1.005        	–          	1
                                                             831.911 	     0               1.00 - 1.09  	   0.01    	 10
                                                             831.910 	                     1.1 - 1.9    	 0.1       	9
                                                                                           2 - 25       	 1   	     	 24
                                                                        	                50 - 100       	 25     	  	3


                                                              M87: 	                       0.5 	 – 	 1
                                                             831.909
                                                             831.908 	     1               1.001 - 1.009 	     0.001 	 9
                                                                           0
Steel gauge blocks, per piece                                           	                  1.00 - 1.50 	   0.01 	 51

Size               Increment  ISO 3650/1    ISO 3650/0                                     2.0 - 10.0 	 0.5 	 17
mm                    mm Price MXN          Price MXN
                                                                                         20 - 100       	 10     	 	 9

    0.5                –                                      M103: 	      1               0.5          	–          	1
  1                    –                                     831.907 	     0               1.005        	–          	1
    1.0005             –                                     831.906 	                     1.00 - 1.50  	   0.01    	 51
    1.001 - 1.009      0.001                                                               2.0 - 25.0   	 0.5       	 47
    1.01 - 1.5        0.01                                              	                50 - 100       	 25     	  	3
    1.6 - 1.9         0.1
    2.0 - 5.5         0.5
    6.0 - 10.0        0.5                                     M112: 	                      0.5 	 – 	 1
  10.5 - 15.0         0.5                                    831.905
  15.5 - 20.0         0.5                                    831.904 	     1               1.0005       	 – 	1
  20.5 - 25.0         0.5                                                  0
  30                   –                                                	                  1.001 - 1.009 	     0.001 	 9
  40                   –
  50                   –                                                	                  1.00 - 1.50 	   0.01 	 51
  60                   –
  70                   –                                                                   2.0 - 25.0 	 0.5 	 47
  75                   –
  80                   –                                                                 50 - 100       	 25     	 	 3
  90                   –
100                    –                                      M122: 	                      0.5 	 – 	 1
                                                             831.903
                                                             831.902 	     1               1.0005       	 – 	1
                                                                           0
                                                                        	                  1.001 - 1.009 	     0.001 	 9

                                                                        	                  1.00 - 1.50 	   0.01 	 51

                                                                        	                  1.6 - 1.9 	 0.1 	 4

                                                                                           2.0 - 25.0 	 0.5 	 47          C11.210.Calidad.20240712

                                                                                         30 - 70        	 10     	 	 5

                                                                                         75 	 – 	 1

                                                                                         80 - 100       	 10     	 	 3
