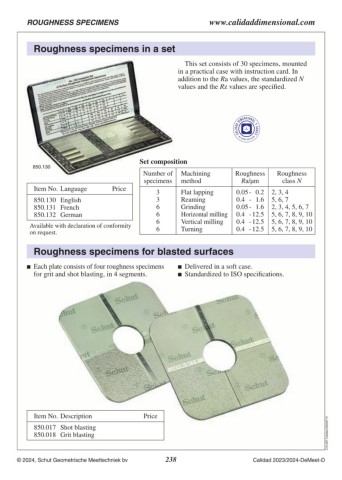

Page 238 - Schut Catalog

ROUGHNESS SPECIMENS www.calidaddimensional.com

Roughness specimens in a set

This set consists of 30 specimens, mounted
in a practical case with instruction card. In
addition to the Ra values, the standardized N
values and the Rz values are specified.

850.130 Set composition

Number of Machining Roughness Roughness
specimens method Ra/µm class N

Item No. Language Price 3 Flat lapping 0.05 - 0.2 2, 3, 4
3 Reaming 0.4 - 1.6 5, 6, 7
850.130 English 6 Grinding 0.05 - 1.6 2, 3, 4, 5, 6, 7
850.131 French 6 Horizontal milling 0.4 - 12.5 5, 6, 7, 8, 9, 10
850.132 German 6 Vertical milling 0.4 - 12.5 5, 6, 7, 8, 9, 10
6 Turning 0.4 - 12.5 5, 6, 7, 8, 9, 10
Available with declaration of conformity
on request.

Roughness specimens for blasted surfaces

 Each plate consists of four roughness specimens  Delivered in a soft case.
for grit and shot blasting, in 4 segments.  Standardized to ISO specifications.

Item No. Description Price C10.207.Calidad.20240712
850.017 Shot blasting
850.018 Grit blasting
