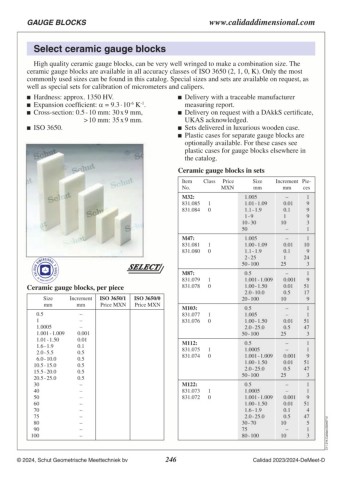

Page 246 - Schut Catalog
P. 246
GAUGE BLOCKS www.calidaddimensional.com
Select ceramic gauge blocks
High quality ceramic gauge blocks, can be very well wringed to make a combination size. The
ceramic gauge blocks are available in all accuracy classes of ISO 3650 (2, 1, 0, K). Only the most
commonly used sizes can be found in this catalog. Special sizes and sets are available on request, as
well as special sets for calibration of micrometers and calipers.
Hardness: approx. 1350 HV. Delivery with a traceable manufacturer
Expansion coefficient: α = 9.3 · 10‑6 K‑1. measuring report.
Cross-section: 0.5 - 10 mm: 30 x 9 mm,
Delivery on request with a DAkkS certificate,
> 10 mm: 35 x 9 mm. UKAS acknowledged.
ISO 3650.
Sets delivered in luxurious wooden case.
Plastic cases for separate gauge blocks are
optionally available. For these cases see
plastic cases for gauge blocks elsewhere in
the catalog.
Ceramic gauge blocks in sets
Item Class Price Size Increment Pie-
No. MXN mm mm ces
M32: 1 1.005 – 1
831.085 0 1.01 - 1.09 0.01 9
831.084 1.1 - 1.9 0.1 9
1 - 9 1 9
10 - 30 10 3
50 – 1
M47: 1 1.005 – 1
831.081 0 1.00 - 1.09 0.01 10
831.080 1.1 - 1.9 0.1 9
2 - 25 1 24
50 - 100 25 3
M87: 0.5 – 1
831.079
831.078 1 1.001 - 1.009 0.001 9
0
Ceramic gauge blocks, per piece 1.00 - 1.50 0.01 51
Size Increment ISO 3650/1 ISO 3650/0 2.0 - 10.0 0.5 17
mm mm Price MXN Price MXN
20 - 100 10 9
0.5 – M103: 1 0.5 – 1
1 – 831.077 0 1.005 – 1
1.0005 – 831.076 1.00 - 1.50 0.01 51
1.001 - 1.009 0.001 2.0 - 25.0 0.5 47
1.01 - 1.50 0.01 50 - 100 25 3
1.6 - 1.9 0.1
2.0 - 5.5 0.5
6.0 - 10.0 0.5 M112: 0.5 – 1
10.5 - 15.0 0.5 831.075
15.5 - 20.0 0.5 831.074 1 1.0005 – 1
20.5 - 25.0 0.5 0
30 – 1.001 - 1.009 0.001 9
40 –
50 – 1.00 - 1.50 0.01 51
60 –
70 – 2.0 - 25.0 0.5 47
75 –
80 – 50 - 100 25 3
90 –
100 – M122: 0.5 – 1
831.073
831.072 1 1.0005 – 1
0
1.001 - 1.009 0.001 9
1.00 - 1.50 0.01 51
1.6 - 1.9 0.1 4
2.0 - 25.0 0.5 47 C11.314.Calidad.20240712
30 - 70 10 5
75 – 1
80 - 100 10 3
