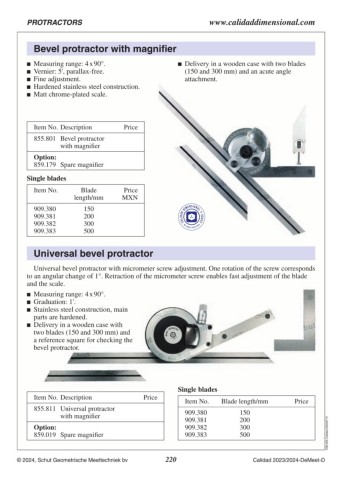

P. 220
PROTRACTORS www.calidaddimensional.com
Bevel protractor with magnifier
Measuring range: 4 x 90°. Delivery in a wooden case with two blades
Vernier: 5', parallax-free. (150 and 300 mm) and an acute angle
Fine adjustment. attachment.
Hardened stainless steel construction.
Matt chrome-plated scale.
Item No. Description Price
855.801 Bevel protractor Price
MXN
with magnifier
Option:
859.179 Spare magnifier
Single blades
Item No. Blade
909.380 length/mm
909.381
909.382 150
909.383 200
300
500
Universal bevel protractor
Universal bevel protractor with micrometer screw adjustment. One rotation of the screw corresponds
to an angular change of 1°. Retraction of the micrometer screw enables fast adjustment of the blade
and the scale.
Measuring range: 4 x 90°.
Graduation: 1'.
Stainless steel construction, main
parts are hardened.
Delivery in a wooden case with
two blades (150 and 300 mm) and
a reference square for checking the
bevel protractor.
Single blades
Item No. Description Price Item No. Blade length/mm Price
855.811 Universal protractor
909.380 150 C08.205.Calidad.20240712
with magnifier 909.381 200
Option: 909.382 300
859.019 Spare magnifier 909.383 500
© 2024, Schut Geometrische Meettechniek bv 220 Calidad 2023/2024-DeMeet-D
