PROTRACTORS www.calidaddimensional.com

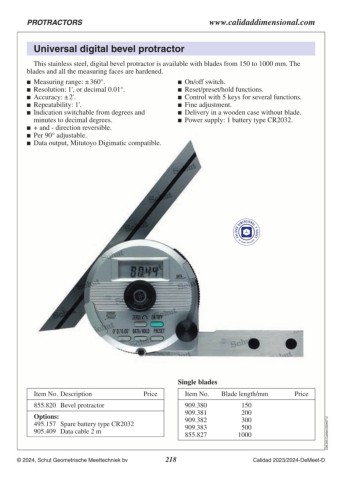

Universal digital bevel protractor
This stainless steel, digital bevel protractor is available with blades from 150 to 1000 mm. The
blades and all the measuring faces are hardened.
Measuring range: ± 360°. On/off switch.
Resolution: 1', or decimal 0.01°. Reset/preset/hold functions.
Accuracy: ± 2'. Control with 5 keys for several functions.
Repeatability: 1'. Fine adjustment.
Indication switchable from degrees and Delivery in a wooden case without blade.
Power supply: 1 battery type CR2032.
minutes to decimal degrees.
+ and - direction reversible.
Per 90° adjustable.
Data output, Mitutoyo Digimatic compatible.
Single blades
Item No. Description Price Item No. Blade length/mm Price
855.820 Bevel protractor
Options: 909.380 150 C08.203.Calidad.20240712
495.157 Spare battery type CR2032 909.381 200
905.409 Data cable 2 m 909.382 300
909.383 500
855.827 1000
