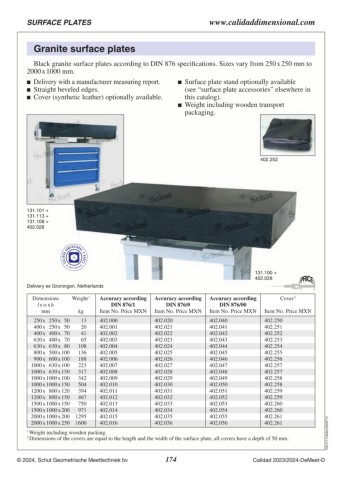

Page 174 - Schut Catalog
P. 174
SURFACE PLATES www.calidaddimensional.com
Granite surface plates
Black granite surface plates according to DIN 876 specifications. Sizes vary from 250 x 250 mm to
2000 x 1000 mm.
Delivery with a manufacturer measuring report. Surface plate stand optionally available
Straight beveled edges. (see “surface plate accessories” elsewhere in
Cover (synthetic leather) optionally available. this catalog).
Weight including wooden transport
packaging.
402.252
131.101 +
131.113 +
131.108 +
402.028
131.100 +
402.028
Delivery ex Groningen, Netherlands
Dimensions Weight 1 Accuracy according Accuracy according Accuracy according Cover 2
l x w x h kg DIN 876/1 DIN 876/0 DIN 876/00 Item No. Price MXN
mm
Item No. Price MXN Item No. Price MXN Item No. Price MXN
250 x 250 x 50 13 402.000 402.020 402.040 402.250 C06.217.Calidad.20240712
400 x 250 x 50 20 402.001 402.021 402.041 402.251
400 x 400 x 70 41 402.002 402.022 402.042 402.252
630 x 400 x 70 65 402.003 402.023 402.043 402.253
630 x 630 x 80 108 402.004 402.024 402.044 402.254
800 x 500 x 100 136 402.005 402.025 402.045 402.255
900 x 600 x 100 188 402.006 402.026 402.046 402.256
1000 x 630 x 100 223 402.007 402.027 402.047 402.257
1000 x 630 x 150 317 402.008 402.028 402.048 402.257
1 000 x 1000 x 100 342 402.009 402.029 402.049 402.258
1000 x 1000 x 150 504 402.010 402.030 402.050 402.258
1 200 x 800 x 120 394 402.011 402.031 402.051 402.259
1 200 x 800 x 150 467 402.012 402.032 402.052 402.259
1500 x 1000 x 150 750 402.013 402.033 402.053 402.260
1 500 x 1000 x 200 971 402.014 402.034 402.054 402.260
2 000 x 1000 x 200 1295 402.015 402.035 402.055 402.261
2 000 x 1000 x 250 1600 402.016 402.036 402.056 402.261
1 Weight including wooden packing.
2 Dimensions of the covers are equal to the length and the width of the surface plate, all covers have a depth of 50 mm.
