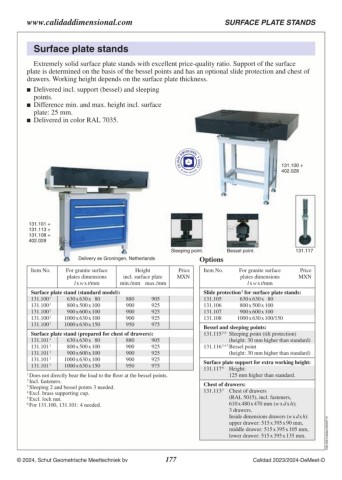

Page 177 - Schut Catalog

www.calidaddimensional.com SURFACE PLATE STANDS

Surface plate stands

Extremely solid surface plate stands with excellent price-quality ratio. Support of the surface
plate is determined on the basis of the bessel points and has an optional slide protection and chest of
drawers. Working height depends on the surface plate thickness.
 Delivered incl. support (bessel) and sleeping

points.
 Difference min. and max. height incl. surface

plate: 25 mm.
 Delivered in color RAL 7035.

131.100 +
402.028

131.101 +
131.113 +
131.108 +
402.028

Sleeping point. Bessel point. 131.117

Delivery ex Groningen, Netherlands Options

Item No. For granite surface Height Price Item No. For granite surface Price
MXN plates dimensions MXN
plates dimensions incl. surface plate
l x w x t/mm
l x w x t/mm min./mm max./mm

Surface plate stand (standard model): 880 905 Slide protection 2 for surface plate stands:
131.100 1 630 x 630 x 80 900 925 131.105 630 x 630 x 80
131.100 1 800 x 500 x 100 900 925 131.106 800 x 500 x 100
131.100 1 900 x 600 x 100 900 925 131.107 900 x 600 x 100
131.100 1 1000 x 630 x 100 950 975 131.108 1000 x 630 x 100/150
131.100 1 1000 x 630 x 150
Bessel and sleeping points:
Surface plate stand (prepared for chest of drawers): 131.115 3,5 Sleeping point (tilt protection)

131.101 1 630 x 630 x 80 880 905 (height: 30 mm higher than standard)
131.116 3,4,5 Bessel point
131.101 1 800 x 500 x 100 900 925
(height: 30 mm higher than standard)
131.101 1 900 x 600 x 100 900 925

131.101 1 1000 x 630 x 100 900 925 Surface plate support for extra working height:
131.117 6 Height:
131.101 1 1000 x 630 x 150 950 975
125 mm higher than standard.
1 Does not directly bear the load to the floor at the bessel points.
2 Incl. fasteners. Chest of drawers:
3 Sleeping 2 and bessel points 3 needed. 131.113 2 Chest of drawers
4 Excl. brass supporting cup.
5 Excl. lock nut. (RAL 5015), incl. fasteners,
6 For 131.100, 131.101: 4 needed. 610 x 480 x 470 mm (w x d x h);
3 drawers.
Inside dimensions drawers (w x d x h): C06.309.Calidad.20240712
upper drawer: 515 x 395 x 90 mm,
middle drawer: 515 x 395 x 105 mm,
lower drawer: 515 x 395 x 135 mm.

© 2024, Schut Geometrische Meettechniek bv 177 Calidad 2023/2024-DeMeet-D
