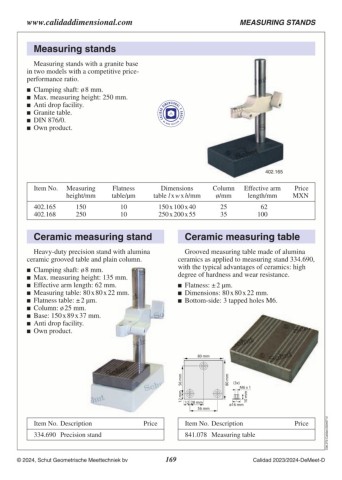

Page 169 - Schut Catalog
P. 169
www.calidaddimensional.com MEASURING STANDS
Measuring stands
Measuring stands with a granite base
in two models with a competitive price-
performance ratio.
Clamping shaft: ø 8 mm.
Max. measuring height: 250 mm.
Anti drop facility.
Granite table.
DIN 876/0.
Own product.
402.165
Item No. Measuring Flatness Dimensions Column Effective arm Price
height/mm table/µm table l x w x h/mm ø/mm length/mm MXN
150 x 100 x 40
402.165 150 10 250 x 200 x 55 25 62
402.168 250 10 35 100
Ceramic measuring stand Ceramic measuring table
Heavy-duty precision stand with alumina Grooved measuring table made of alumina
ceramic grooved table and plain column. ceramics as applied to measuring stand 334.690,
Clamping shaft: ø 8 mm. with the typical advantages of ceramics: high
Max. measuring height: 135 mm. degree of hardness and wear resistance.
Effective arm length: 62 mm. Flatness: ± 2 µm.
Measuring table: 80 x 80 x 22 mm. Dimensions: 80 x 80 x 22 mm.
Flatness table: ± 2 µm. Bottom-side: 3 tapped holes M6.
Column: ø 25 mm.
Base: 150 x 89 x 37 mm.
Anti drop facility.
Own product.
80 mm
12 mm 56 mm (3x)
80 mmM6 x 1
12 28 mm 10 mmø16 mm
56 mm
C06.272.Calidad.20240712
Item No. Description Price Item No. Description Price
334.690 Precision stand 841.078 Measuring table
