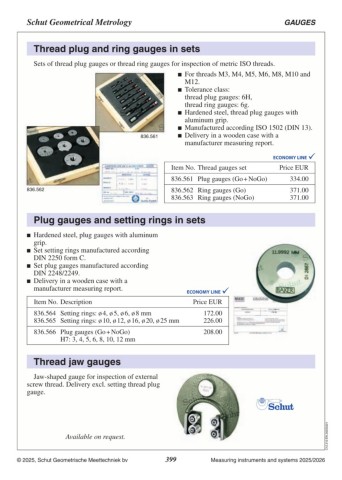

Page 399 - Schut Catalog

Schut Geometrical Metrology GAUGES

Thread plug and ring gauges in sets

Sets of thread plug gauges or thread ring gauges for inspection of metric ISO threads.

836.561  For threads M3, M4, M5, M6, M8, M10 and
M12.

 Tolerance class:
thread plug gauges: 6H,
thread ring gauges: 6g.

 Hardened steel, thread plug gauges with
aluminum grip.

 Manufactured according ISO 1502 (DIN 13).
 Delivery in a wooden case with a

manufacturer measuring report.

836.562 Item No. Thread gauges set Price EUR
836.561 Plug gauges (Go + NoGo) 334.00
836.562 Ring gauges (Go) 371.00
836.563 Ring gauges (NoGo) 371.00

Plug gauges and setting rings in sets

 Hardened steel, plug gauges with aluminum
grip.

 Set setting rings manufactured according
DIN 2250 form C.

 Set plug gauges manufactured according
DIN 2248/2249.

 Delivery in a wooden case with a
manufacturer measuring report.

Item No. Description Price EUR
836.564 Setting rings: ø 4, ø 5, ø 6, ø 8 mm 172.00
836.565 Setting rings: ø 10, ø 12, ø 16, ø 20, ø 25 mm 226.00
836.566 Plug gauges (Go + NoGo) 208.00

H7: 3, 4, 5, 6, 8, 10, 12 mm

Thread jaw gauges

Jaw‑shaped gauge for inspection of external
screw thread. For correct use, a setting thread
plug gauge is needed. These can be purchased
separately.

Setting thread plug gauge Available on request. C12.212.EN.20250702
© 2025, Schut Geometrische Meettechniek bv
399 Measuring instruments and systems 2025/2026
