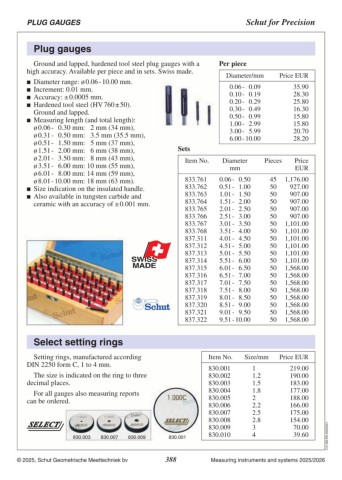

P. 388
PLUG GAUGES Schut for Precision
Martin + Tschopp plug gauges
Ground and lapped, hardened tool steel plug gauges with a Per piece Price EUR
high accuracy. Available per piece and in sets. Swiss made. Diameter/mm 35.90
0.06 - 0.09 28.30
Diameter range: ø 0.06 - 10.00 mm. 0.10 - 0.19 25.80
Increment: 0.01 mm. 0.20 - 0.29 16.30
Accuracy: ± 0.0005 mm. 0.30 - 0.49 15.80
Hardened tool steel (HV 760 ± 50). 0.50 - 0.99
1.00 - 2.99 20.70
Ground and lapped. 3.00 - 5.99 28.20
Measuring length (and total length): 6.00 - 10.00
ø 0.06 - 0.30 mm: 2 mm (34 mm), Sets Diameter Pieces Price
ø 0.31 - 0.50 mm: 3.5 mm (35.5 mm), Item No. mm EUR
ø 0.51 - 1.50 mm: 5 mm (37 mm),
ø 1.51 - 2.00 mm: 6 mm (38 mm), 833.761 0.06 - 0.50 45 1,176.00
ø 2.01 - 3.50 mm: 8 mm (43 mm), 833.762 0.51 - 1.00 50 927.00
ø 3.51 - 6.00 mm: 10 mm (55 mm), 833.763 1.01 - 1.50 50 907.00
ø 6.01 - 8.00 mm: 14 mm (59 mm), 833.764 1.51 - 2.00 50 907.00
ø 8.01 - 10.00 mm: 18 mm (63 mm). 833.765 2.01 - 2.50 50 907.00
Size indication on the insulated handle. 833.766 2.51 - 3.00 50 907.00
Also available in tungsten carbide and 833.767 3.01 - 3.50 50 1,101.00
ceramic with an accuracy of ± 0.001 mm. 833.768 3.51 - 4.00 50 1,101.00
837.311 4.01 - 4.50 50 1,101.00
837.312 4.51 - 5.00 50 1,101.00
837.313 5.01 - 5.50 50 1,101.00
837.314 5.51 - 6.00 50 1,101.00
837.315 6.01 - 6.50 50 1,568.00
837.316 6.51 - 7.00 50 1,568.00
837.317 7.01 - 7.50 50 1,568.00
837.318 7.51 - 8.00 50 1,568.00
837.319 8.01 - 8.50 50 1,568.00
837.320 8.51 - 9.00 50 1,568.00
837.321 9.01 - 9.50 50 1,568.00
837.322 9.51 - 10.00 50 1,568.00
More information: www.schut.com/PDFs/2025-p388-EN.pdf
Select setting rings
Setting rings, manufactured according 830.001 Item No. Size/mm Price EUR C12.302.EN.20260702
DIN 2250 form C, 1 to 4 mm. 830.001 1 249.00
830.002 1.2 238.00
The size is indicated on the ring to three 830.003 1.5 229.00
decimal places. 830.004 1.8 222.00
830.005 2 214.00
For all gauges also measuring reports 830.006 2.2 207.00
can be ordered. 830.007 2.5 199.00
830.008 2.8 192.00
830.003 830.007 830.009 830.009 3 83.00
830.010 4 38.50
© 2026, Schut Geometrische Meettechniek bv 388 Measuring instruments and systems 2025/2026
