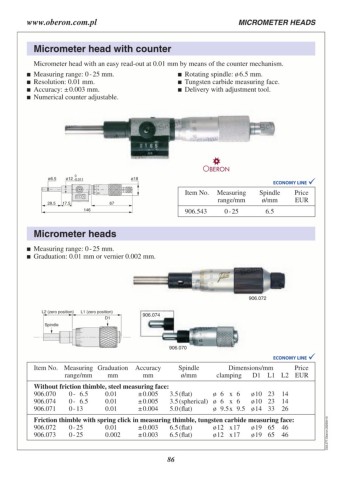

P. 86
www.oberon.com.pl MICROMETER HEADS
Micrometer head with counter
Micrometer head with an easy read-out at 0.01 mm by means of the counter mechanism.
Measuring range: 0 - 25 mm. Rotating spindle: ø 6.5 mm.
Resolution: 0.01 mm. Tungsten carbide measuring face.
Accuracy: ± 0.003 mm. Delivery with adjustment tool.
Numerical counter adjustable.
ø6.5 ø12 0 ø18
28.5 -0.011
5 Item No. Measuring Spindle Price
0 range/mm ø/mm EUR
45 906.543 0 - 25 6.5
17.5 0 000 67
146
Micrometer heads
Measuring range: 0 - 25 mm.
Graduation: 0.01 mm or vernier 0.002 mm.
906.072
L2 (zero position) L1 (zero position) 906.074
Spindle D1
906.070
Item No. Measuring Graduation Accuracy Spindle Dimensions/mm Price
range/mm mm mm ø/mm clamping D1 L1 L2 EUR
Without friction thimble, steel measuring face: ø 6 x 6 ø 10 23 14
906.070 0 - 6.5 0.01 ± 0.005 3.5 (flat)
906.074 0 - 6.5 0.01 ± 0.005 3.5 (spherical) ø 6 x 6 ø 10 23 14
906.071 0 - 13 0.01 ± 0.004 5.0 (flat) ø 9.5 x 9.5 ø 14 33 26
Friction thimble with spring click in measuring thimble, tungsten carbide measuring face: C03.277.Oberon.20250410
906.072 0 - 25 0.01 ± 0.003 6.5 (flat) ø 12 x 17 ø 19 65 46
906.073 0 - 25 0.002 ± 0.003 6.5 (flat) ø 12 x 17 ø 19 65 46
