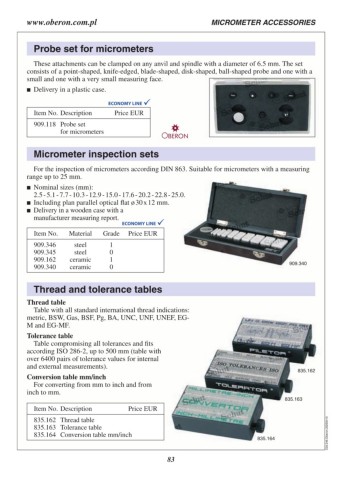

www.oberon.com.pl MICROMETER ACCESSORIES

Probe set for micrometers

These attachments can be clamped on any anvil and spindle with a diameter of 6.5 mm. The set
consists of a point-shaped, knife-edged, blade-shaped, disk-shaped, ball-shaped probe and one with a
small and one with a very small measuring face.
 Delivery in a plastic case.

Item No. Description Price EUR
909.118 Probe set

for micrometers

Micrometer inspection sets

For the inspection of micrometers according DIN 863. Suitable for micrometers with a measuring
range up to 25 mm.
 Nominal sizes (mm):

2.5 - 5.1 - 7.7 - 10.3 - 12.9 - 15.0 - 17.6 - 20.2 - 22.8 - 25.0.
 Including plan parallel optical flat ø 30 x 12 mm.
 Delivery in a wooden case with a

manufacturer measuring report.

Item No. Material Grade Price EUR
909.346 steel 1
909.345 steel 0 909.340
909.162 1
909.340 ceramic 0
ceramic

Thread and tolerance tables 835.162
835.163
Thread table 835.164
Table with all standard international thread indications:

metric, BSW, Gas, BSF, Pg, BA, UNC, UNF, UNEF, EG-
M and EG-MF.
Tolerance table

Table compromising all tolerances and fits
according ISO 286‑2, up to 500 mm (table with
over 6400 pairs of tolerance values for internal
and external measurements).
Conversion table mm/inch

For converting from mm to inch and from
inch to mm.

Item No. Description Price EUR

835.162 Thread table C03.246.Oberon.20250410
835.163 Tolerance table
835.164 Conversion table mm/inch

83
