www.mtsranders.dk INTERNAL MICROMETERS

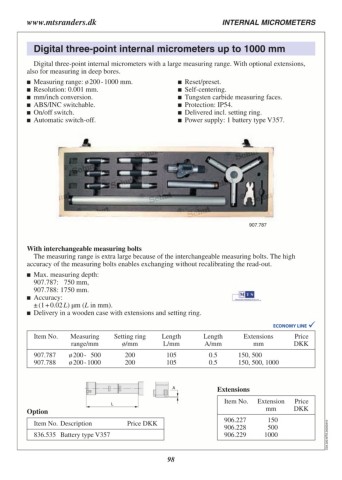

Digital three-point internal micrometers up to 1000 mm
Digital three-point internal micrometers with a large measuring range. With optional extensions,
also for measuring in deep bores.
Measuring range: ø 200 - 1000 mm. Reset/preset.
Resolution: 0.001 mm. Self-centering.
mm/inch conversion. Tungsten carbide measuring faces.
ABS/INC switchable. Protection: IP54.
On/off switch. Delivered incl. setting ring.
Automatic switch-off. Power supply: 1 battery type V357.
907.787
With interchangeable measuring bolts
The measuring range is extra large because of the interchangeable measuring bolts. The high
accuracy of the measuring bolts enables exchanging without recalibrating the read-out.
Max. measuring depth:
907.787: 750 mm,
907.788: 1750 mm.
Accuracy:
± (1 + 0.02 L) µm (L in mm).
Delivery in a wooden case with extensions and setting ring.
Item No. Measuring Setting ring Length Length Extensions Price
907.787 range/mm ø/mm L/mm A/mm mm DKK
907.788 ø 200 - 500 105
ø 200 - 1000 200 105 0.5 150, 500
200 0.5 150, 500, 1000
A Extensions
L Item No. Extension Price
mm DKK
Option
Item No. Description Price DKK 906.227 150 C04.320.MTS.20250410
906.228 500
836.535 Battery type V357 906.229 1000
