P. 100
www.mtsranders.dk INTERNAL MEASURING INSTRUMENTS

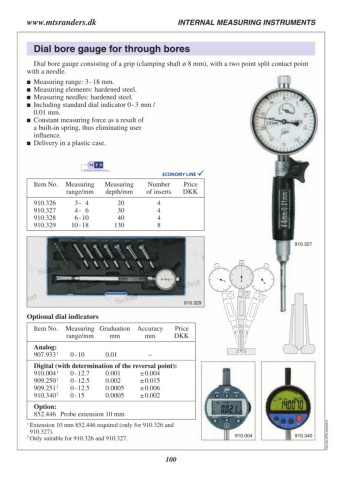

Dial bore gauge for through bores
Dial bore gauge consisting of a grip (clamping shaft ø 8 mm), with a two point split contact point
with a needle.
Measuring range: 3 - 18 mm.
Measuring elements: hardened steel.
Measuring needles: hardened steel.
Including standard dial indicator 0 - 3 mm /
0.01 mm.
Constant measuring force as a result of
a built-in spring, thus eliminating user
influence.
Delivery in a plastic case.
Item No. Measuring Measuring Number Price
range/mm depth/mm of inserts DKK
910.326 3 - 4 20 4
910.327 4 - 6 30 4
910.328 6 - 10 40 4
910.329 10 - 18 130 8
910.327
910.329
Optional dial indicators
Item No. Measuring Graduation Accuracy Price
range/mm mm mm DKK
Analog: 0.01 –
907.933 1 0 - 10
Digital (with determination of the reversal point):
910.004 1 0 - 12.7 0.001 ± 0.004
909.250 1 0 - 12.5 0.002 ± 0.015
909.251 1 0 - 12.5 0.0005 ± 0.006
910.340 2 0 - 15 0.0005 ± 0.002
Option:
852.446 Probe extension 10 mm
1 Extension 10 mm 852.446 required (only for 910.326 and 910.004 910.340 C04.333.MTS.20250410
910.327).
2 Only suitable for 910.326 and 910.327.
100
