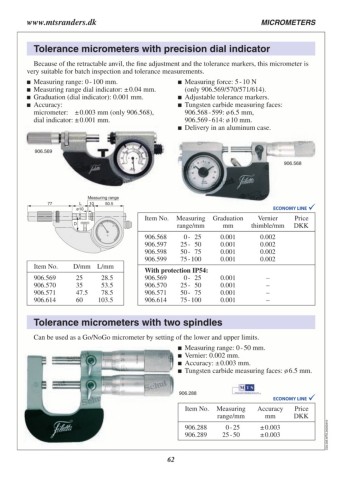

www.mtsranders.dk MICROMETERS
Tolerance micrometers with precision dial indicator
Because of the retractable anvil, the fine adjustment and the tolerance markers, this micrometer is
very suitable for batch inspection and tolerance measurements.
Measuring range: 0 - 100 mm. Measuring force: 5 - 10 N
Measuring range dial indicator: ± 0.04 mm. (only 906.569/570/571/614).
Graduation (dial indicator): 0.001 mm.
Accuracy: Adjustable tolerance markers.
Tungsten carbide measuring faces:
micrometer: ± 0.003 mm (only 906.568),
dial indicator: ± 0.001 mm. 906.568 - 599: ø 6.5 mm,
906.569 - 614: ø 10 mm.
Delivery in an aluminum case.
906.569
906.568
Measuring range
77 L 10 50.5
ø10
D Item No. Measuring Graduation Vernier Price
range/mm mm thimble/mm DKK
Item No. D/mm L/mm 906.568 0 - 25 0.001 0.002
906.569 25 28.5 906.597 25 - 50 0.001 0.002
906.570 35 53.5 906.598 50 - 75 0.001 0.002
906.571 47.5 78.5 906.599 75 - 100 0.001 0.002
906.614 60 103.5
With protection IP54: 0.001 –
906.569 0 - 25 0.001 –
906.570 25 - 50 0.001 –
906.571 50 - 75 0.001 –
906.614 75 - 100
Tolerance micrometers with two spindles
Can be used as a Go/NoGo micrometer by setting of the lower and upper limits.
Measuring range: 0 - 50 mm.
Vernier: 0.002 mm.
Accuracy: ± 0.003 mm.
Tungsten carbide measuring faces: ø 6.5 mm.
906.288
Item No. Measuring Accuracy Price
range/mm mm DKK
906.288 0 - 25 ± 0.003 C03.205.MTS.20250410
906.289 25 - 50 ± 0.003
