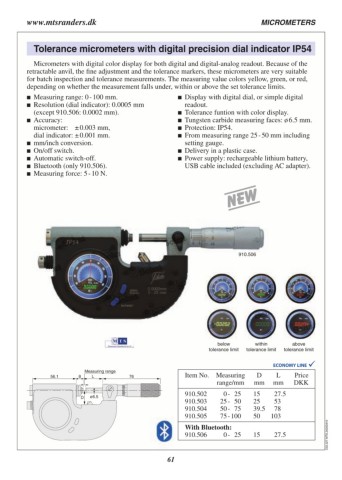

Page 61 - Schut Catalog

www.mtsranders.dk MICROMETERS

Tolerance micrometers with digital precision dial indicator IP54

Micrometers with digital color display for both digital and digital-analog readout. Because of the
retractable anvil, the fine adjustment and the tolerance markers, these micrometers are very suitable
for batch inspection and tolerance measurements. The measuring value colors yellow, green, or red,
depending on whether the measurement falls under, within or above the set tolerance limits.

 Measuring range: 0 - 100 mm.  Display with digital dial, or simple digital
 Resolution (dial indicator): 0.0005 mm readout.

(except 910.506: 0.0002 mm).  Tolerance funtion with color display.
 Accuracy:  Tungsten carbide measuring faces: ø 6.5 mm.
 Protection: IP54.
micrometer: ± 0.003 mm,  From measuring range 25 - 50 mm including
dial indicator: ± 0.001 mm.
 mm/inch conversion. setting gauge.
 On/off switch.  Delivery in a plastic case.
 Automatic switch-off.  Power supply: rechargeable lithium battery,
 Bluetooth (only 910.506).
 Measuring force: 5 - 10 N. USB cable included (excluding AC adapter).

910.506

below within above
tolerance limit tolerance limit tolerance limit

56.1 Measuring range 76 Item No. Measuring D L Price
8L range/mm mm mm DKK

D ø6.5 910.502 0 - 25 15 27.5
910.503 25 - 50 25 53
910.504 50 - 75 39.5 78
910.505 75 - 100 50 103

With Bluetooth: C03.327.MTS.20250410
910.506 0 - 25 15 27.5

61
