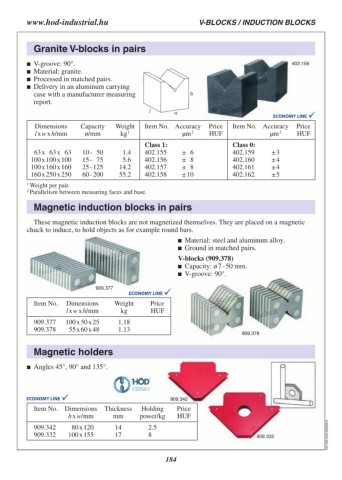

www.hod-industrial.hu V-BLOCKS / INDUCTION BLOCKS

Granite V‑blocks in pairs

 V‑groove: 90°. 402.156
 Material: granite.
 Processed in matched pairs. h
 Delivery in an aluminum carrying w

case with a manufacturer measuring
report.

l

Dimensions Capacity Weight Item No. Accuracy Price Item No. Accuracy Price
l x w x h/mm ø/mm kg 1 µm 2 HUF µm 2 HUF

63 x 63 x 63 10 - 50 1.4 Class 1: ± 6 Class 0: ± 3
100 x 100 x 100 15 - 75 5.6 402.155 ± 8 402.159 ± 4
100 x 160 x 160 25 - 125 14.2 402.156 ± 8 402.160 ± 4
160 x 250 x 250 60 - 200 55.2 402.157 ± 10 402.161 ± 5
402.158 402.162

1 Weight per pair.
2 Parallelism between measuring faces and base.

Magnetic induction blocks in pairs

These magnetic induction blocks are not magnetized themselves. They are placed on a magnetic
chuck to induce, to hold objects as for example round bars.

 Material: steel and aluminum alloy.
 Ground in matched pairs.
V-blocks (909.378)
 Capacity: ø 7 - 50 mm.
 V‑groove: 90°.

909.377

Item No. Dimensions Weight Price
l x w x h/mm kg HUF
1.18
909.377 100 x 50 x 25 1.13 909.378
909.378 55 x 60 x 48

Magnetic holders

 Angles 45°, 90° and 135°.

909.342

Item No. Dimensions Thickness Holding Price
h x w/mm mm power/kg HUF

909.342 80 x 120 14 2.5 909.332 C07.205.HOD.20250410
909.332 100 x 155 17 8

184
