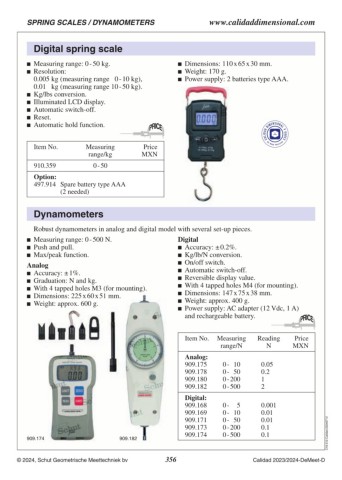

Page 356 - Schut Catalog
P. 356
SPRING SCALES / DYNAMOMETERS www.calidaddimensional.com
Digital spring scale Dimensions: 110 x 65 x 30 mm.
Weight: 170 g.
Measuring range: 0 - 50 kg. Power supply: 2 batteries type AAA.
Resolution:
0.005 kg (measuring range 0 - 10 kg),
0.01 kg (measuring range 10 - 50 kg).
Kg/lbs conversion.
Illuminated LCD display.
Automatic switch-off.
Reset.
Automatic hold function.
Item No. Measuring Price
range/kg MXN
910.359 0 - 50
Option:
497.914 Spare battery type AAA
(2 needed)
Dynamometers
Robust dynamometers in analog and digital model with several set-up pieces.
Measuring range: 0 - 500 N. Digital
Push and pull. Accuracy: ± 0.2%.
Max/peak function. Kg/lb/N conversion.
Analog On/off switch.
Accuracy: ± 1%. Automatic switch-off.
Graduation: N and kg. Reversible display value.
With 4 tapped holes M3 (for mounting). With 4 tapped holes M4 (for mounting).
Dimensions: 225 x 60 x 51 mm. Dimensions: 147 x 75 x 38 mm.
Weight: approx. 600 g. Weight: approx. 400 g.
Power supply: AC adapter (12 Vdc, 1 A)
and rechargeable battery.
Item No. Measuring Reading Price
range/N N MXN
Analog: 0 - 10 0.05
909.175 0 - 50 0.2
909.178 0 - 200 1
909.180 0 - 500 2
909.182
909.174 909.182 Digital: 0 - 5 0.001 C18.312.Calidad.20240712
909.168 0 - 10 0.01
909.169 0 - 50 0.01
909.171 0 - 200 0.1
909.173 0 - 500 0.1
909.174
© 2024, Schut Geometrische Meettechniek bv 356 Calidad 2023/2024-DeMeet-D
