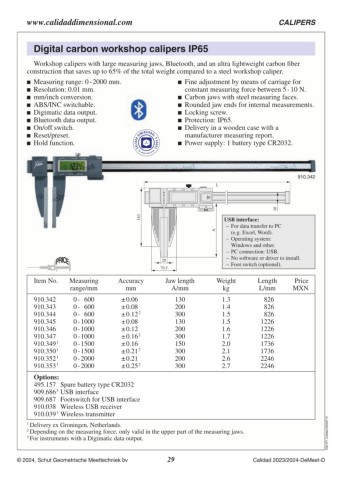

Page 29 - Schut Catalog

www.calidaddimensional.com CALIPERS

Digital carbon workshop calipers IP65

Workshop calipers with large measuring jaws, Bluetooth, and an ultra lightweight carbon fiber
construction that saves up to 65% of the total weight compared to a steel workshop caliper.

 Measuring range: 0 - 2000 mm.  Fine adjustment by means of carriage for
 Resolution: 0.01 mm. constant measuring force between 5 - 10 N.
 mm/inch conversion.
 ABS/INC switchable.  Carbon jaws with steel measuring faces.
 Digimatic data output.  Rounded jaw ends for internal measurements.
 Bluetooth data output.  Locking screw.
 On/off switch.  Protection: IP65.
 Reset/preset.  Delivery in a wooden case with a
 Hold function.
manufacturer measuring report.
 Power supply: 1 battery type CR2032.

910.342
L

163
A

30
USB interface:

– For data transfer to PC

(e.g. Excel, Word).

– Operating system:

Windows and other.

– PC connection: USB.

20 – No software or driver to install.
70.5 – Foot switch (optional).

Item No. Measuring Accuracy Jaw length Weight Length Price
range/mm mm A/mm kg L/mm MXN

910.342 0 - 600 ± 0.06 130 1.3 826
910.343 0 - 600 ± 0.08 200 1.4 826
910.344 0 - 600 ± 0.12 2 300 1.5 826
910.345 0 - 1000 ± 0.08 130 1.5 1226
910.346 0 - 1000 ± 0.12 200 1.6 1226
910.347 0 - 1000 ± 0.16 2 300 1.7 1226
910.349 1 0 - 1500 ± 0.16 150 2.0 1736
910.350 1 0 - 1500 ± 0.21 2 300 2.1 1736
910.352 1 0 - 2000 ± 0.21 200 2.6 2246
910.353 1 0 - 2000 ± 0.25 2 300 2.7 2246

Options: C02.371.Calidad.20240712
495.157 Spare battery type CR2032
909.686 3 USB interface
909.687 Footswitch for USB interface
910.038 Wireless USB receiver
910.039 3 Wireless transmitter

1 Delivery ex Groningen, Netherlands.
2 Depending on the measuring force, only valid in the upper part of the measuring jaws.
3 For instruments with a Digimatic data output.

© 2024, Schut Geometrische Meettechniek bv 29 Calidad 2023/2024-DeMeet-D
