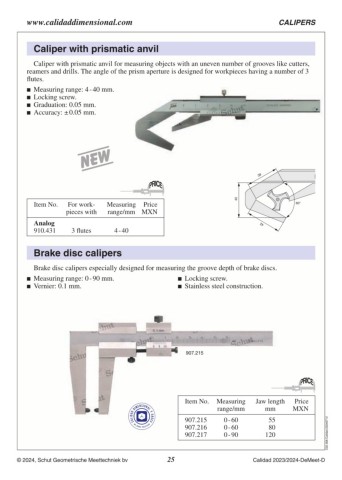

Page 25 - Schut Catalog
P. 25
www.calidaddimensional.com CALIPERS
Caliper with prismatic anvil
Caliper with prismatic anvil for measuring objects with an uneven number of grooves like cutters,
reamers and drills. The angle of the prism aperture is designed for workpieces having a number of 3
flutes.
Measuring range: 4 - 40 mm.
Locking screw.
Graduation: 0.05 mm.
Accuracy: ± 0.05 mm.
39
Item No. For work- Measuring Price 42 60°
Analog pieces with range/mm MXN C02.368.Calidad.20240712
910.431 42
3 flutes 4 - 40
Brake disc calipers
Brake disc calipers especially designed for measuring the groove depth of brake discs.
Measuring range: 0 - 90 mm. Locking screw.
Vernier: 0.1 mm. Stainless steel construction.
907.215
Item No. Measuring Jaw length Price
range/mm mm MXN
907.215 0 - 60 55
907.216 0 - 60 80
907.217 0 - 90 120
