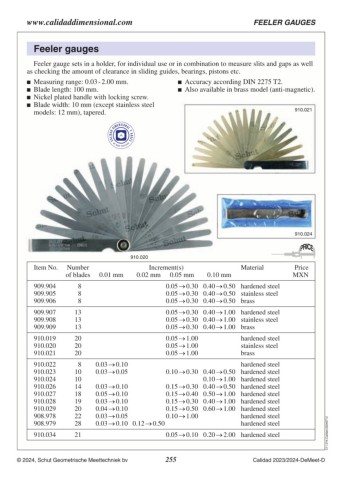

Page 255 - Schut Catalog

www.calidaddimensional.com FEELER GAUGES

Feeler gauges

Feeler gauge sets in a holder, for individual use or in combination to measure slits and gaps as well
as checking the amount of clearance in sliding guides, bearings, pistons etc.

 Measuring range: 0.03 - 2.00 mm.  Accuracy according DIN 2275 T2.
 Blade length: 100 mm.  Also available in brass model (anti-magnetic).
 Nickel plated handle with locking screw.
 Blade width: 10 mm (except stainless steel 910.021

models: 12 mm), tapered.

910.024

910.020

Item No. Number Increment(s) Material Price
of blades 0.01 mm 0.02 mm 0.05 mm 0.10 mm MXN

909.904 8 0.05 → 0.30 0.40 → 0.50 hardened steel
909.905 8 0.05 → 0.30 0.40 → 0.50 stainless steel
909.906 8 0.05 → 0.30 0.40 → 0.50 brass

909.907 13 0.05 → 0.30 0.40 → 1.00 hardened steel
909.908 13 0.05 → 0.30 0.40 → 1.00 stainless steel
909.909 13 0.05 → 0.30 0.40 → 1.00 brass

910.019 20 0.05 → 1.00 hardened steel
910.020 20 0.05 → 1.00 stainless steel
910.021 20 0.05 → 1.00 brass

910.022 8 0.03 → 0.10 hardened steel
910.023 10 0 .03 → 0.05 0.10 → 0.30 0.40 → 0.50 hardened steel
910.024 10 0.10 → 1.00 hardened steel
910.026 14 0.03 → 0.10 0.15 → 0.30 0.40 → 0.50 hardened steel
910.027 18 0.05 → 0.10 0.15 → 0.40 0.50 → 1.00 hardened steel
910.028 19 0.03 → 0.10 0.15 → 0.30 0.40 → 1.00 hardened steel
910.029 20 0 .04 → 0.10 0.15 → 0.50 0.60 → 1.00 hardened steel
908.978 22 0.03 → 0.05 0.10 → 1.00 hardened steel
908.979 28 0 .03 → 0.10 0.12 → 0.50 hardened steel C11.214.Calidad.20240712

910.034 21 0.05 → 0.10 0.20 → 2.00 hardened steel
