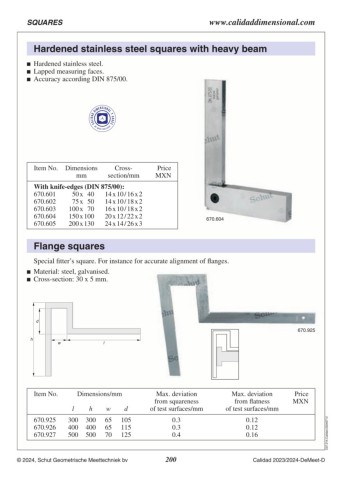

Page 200 - Schut Catalog

SQUARES www.calidaddimensional.com

Hardened stainless steel squares with heavy beam

 Hardened stainless steel.
 Lapped measuring faces.
 Accuracy according DIN 875/00.

Item No. Dimensions Cross- Price
mm section/mm MXN

With knife-edges (DIN 875/00): 670.604
670.601 50 x 40 14 x 10 / 16 x 2
670.602 75 x 50 14 x 10 / 18 x 2
670.603 100 x 70 16 x 10 / 18 x 2
670.604 150 x 100 20 x 12 / 22 x 2
670.605 200 x 130 24 x 14 / 26 x 3

Flange squares

Special fitter’s square. For instance for accurate alignment of flanges.
 Material: steel, galvanised.
 Cross-section: 30 x 5 mm.

d 670.925
h
l
w

Item No. Dimensions/mm Max. deviation Max. deviation Price
from squareness from flatness MXN
l h w d of test surfaces/mm of test surfaces/mm
670.925 300 300 65 105 0.12 C07.214.Calidad.20240712
670.926 400 400 65 115 0.3 0.12
670.927 500 500 70 125 0.3 0.16
0.4
