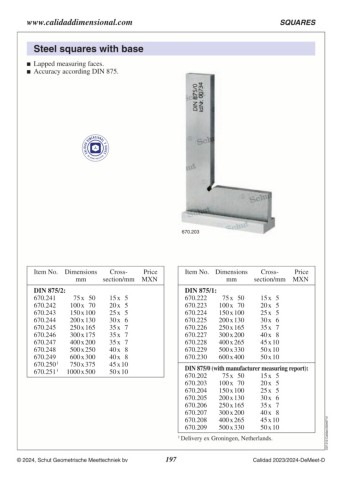

Page 197 - Schut Catalog

www.calidaddimensional.com SQUARES

Steel squares with base

 Lapped measuring faces.
 Accuracy according DIN 875.

670.203

Item No. Dimensions Cross- Price Item No. Dimensions Cross- Price
mm section/mm MXN mm section/mm MXN

DIN 875/2: 15 x 5 DIN 875/1:
670.241 75 x 50 20 x 5 670.222 75 x 50 15 x 5
670.242 100 x 70 25 x 5 670.223 100 x 70 20 x 5
670.243 150 x 100 30 x 6 670.224 150 x 100 25 x 5
670.244 200 x 130 35 x 7 670.225 200 x 130 30 x 6
670.245 250 x 165 35 x 7 670.226 250 x 165 35 x 7
670.246 300 x 175 35 x 7 670.227 300 x 200 40 x 8
670.247 400 x 200 40 x 8 670.228 400 x 265 45 x 10
670.248 500 x 250 40 x 8 670.229 500 x 330 50 x 10
670.249 600 x 300 45 x 10 670.230 600 x 400 50 x 10
670.250 1 750 x 375 50 x 10 DIN 875/0 (with manufacturer measuring report):
670.251 1 1000 x 500 670.202 75 x 50 15 x 5
670.203 100 x 70 20 x 5
670.204 150 x 100 25 x 5 C07.212.Calidad.20240712
670.205 200 x 130 30 x 6
670.206 250 x 165 35 x 7
670.207 300 x 200 40 x 8
670.208 400 x 265 45 x 10
670.209 500 x 330 50 x 10
1 Delivery ex Groningen, Netherlands.
