SETTING INSTRUMENTS www.calidaddimensional.com

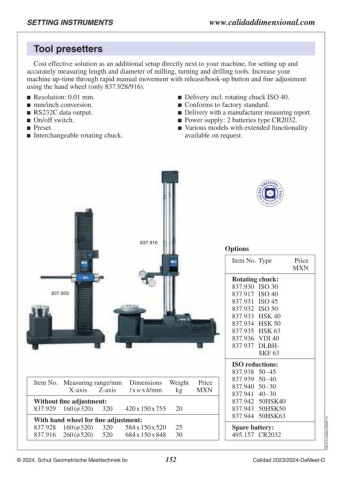

Tool presetters
Cost effective solution as an additional setup directly next to your machine, for setting up and
accurately measuring length and diameter of milling, turning and drilling tools. Increase your
machine up-time through rapid manual movement with release/hook-up button and fine adjustment
using the hand wheel (only 837.928/916).
Resolution: 0.01 mm. Delivery incl. rotating chuck ISO 40.
mm/inch conversion. Conforms to factory standard.
RS232C data output. Delivery with a manufacturer measuring report.
On/off switch. Power supply: 2 batteries type CR2032.
Preset. Various models with extended functionality
Interchangeable rotating chuck.
available on request.
837.916 Options
Item No. Type Price
MXN
837.929 Rotating chuck:
837.930 ISO 30
837.917 ISO 40
837.931 ISO 45
837.932 ISO 50
837.933 HSK 40
837.934 HSK 50
837.935 HSK 63
837.936 VDI 40
837.937 DLBH-
SKF 63
Item No. Measuring range/mm Dimensions Weight Price ISO reductions: C04.313.Calidad.20240712
X-axis Z-axis l x w x h/mm kg MXN 837.938 50 - 45
837.939 50 - 40
Without fine adjustment: 837.940 50 - 30
837.929 160 (ø 320) 320 420 x 150 x 755 20 837.941 40 - 30
With hand wheel for fine adjustment: 837.942 50HSK40
837.928 160 (ø 320) 320 584 x 150 x 520 25 837.943 50HSK50
837.916 260 (ø 520) 520 684 x 150 x 848 30 837.944 50HSK63
Spare battery:
495.157 CR2032
