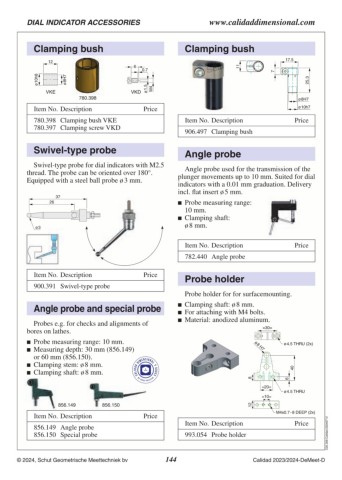

Page 144 - Schut Catalog

DIAL INDICATOR ACCESSORIES www.calidaddimensional.com

Clamping bush Clamping bush

12 17.5

6 0.7
ø10h8
ø8H7
ø1.5
M4

11
7
25.3
VKE VKD

780.398 Price ø8H7
ø10h7
Item No. Description
Price
780.398 Clamping bush VKE Item No. Description
780.397 Clamping screw VKD 906.497 Clamping bush

Swivel-type probe Angle probe

Swivel-type probe for dial indicators with M2.5 Angle probe used for the transmission of the
thread. The probe can be oriented over 180°. plunger movements up to 10 mm. Suited for dial
Equipped with a steel ball probe ø 3 mm. indicators with a 0.01 mm graduation. Delivery
incl. flat insert ø 5 mm.
37  Probe measuring range:
26
10 mm.
ø3  Clamping shaft:

ø 8 mm.

Item No. Description Price
782.440 Angle probe

Item No. Description Price Probe holder
900.391 Swivel-type probe

Angle probe and special probe Probe holder for for surfacemounting.

Probes e.g. for checks and alignments of  Clamping shaft: ø 8 mm.
bores on lathes.  For attaching with M4 bolts.
 Probe measuring range: 10 mm.  Material: anodized aluminum.
 Measuring depth: 30 mm (856.149)
=30=
or 60 mm (856.150).
 Clamping stem: ø 8 mm. ø8 H7 ø4.5 THRU (2x)
 Clamping shaft: ø 8 mm.
6
12 8 40

=20= ø4.5 THRU
=10=

856.149 856.150

Item No. Description Price Item No. Description M4x0.7 - 8 DEEP (2x) C05.309.Calidad.20240712
993.054 Probe holder
856.149 Angle probe Price
856.150 Special probe
